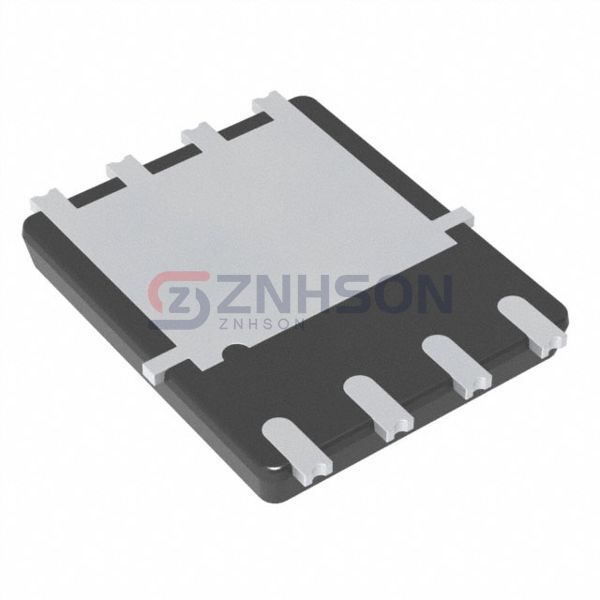

STLD200N4F6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$3.73
Available to order
Reference Price (USD)
2,500+
$1.44888
5,000+
$1.40130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STLD200N4F6AG by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STLD200N4F6AG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 172 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 10700 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 158W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6) Dual Side
- Package / Case: 8-PowerWDFN
Related Products
Panjit International Inc.
PJQ5462A_R2_00001

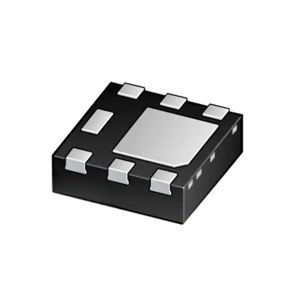

Nexperia USA Inc.
BUK6D30-40EX

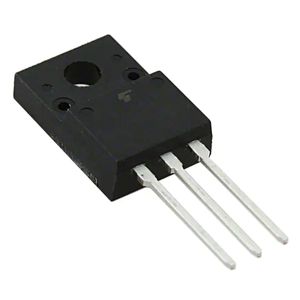

Toshiba Semiconductor and Storage
TK13A55DA(STA4,QM)

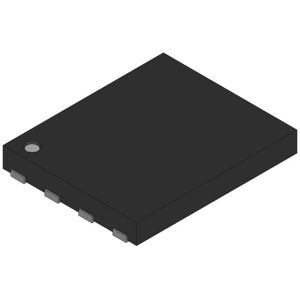

Renesas Electronics America Inc
RJK03N6DPA-00#J5A

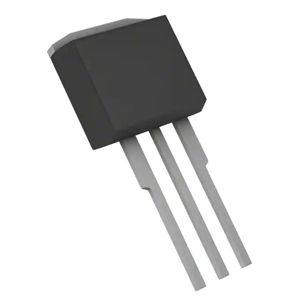

Infineon Technologies
IPI90N06S4L04AKSA2
Fairchild Semiconductor
FDD6680AS
Fairchild Semiconductor
FDFMA2P853T
Infineon Technologies
IPP530N15N3GXKSA1

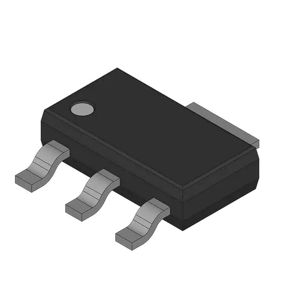

onsemi
