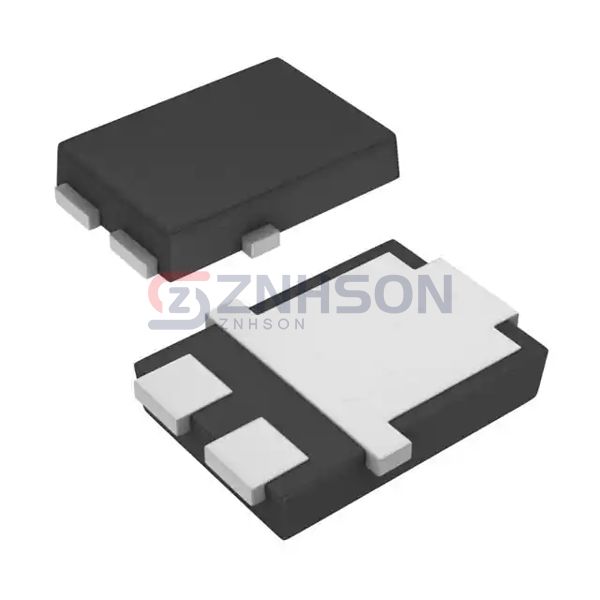

STTH1002CSF
STMicroelectronics
STMicroelectronics
ULTRAFAST DIODE 200V, DUAL 5A
$0.95
Available to order
Reference Price (USD)
1+
$0.95000
500+
$0.9405
1000+
$0.931
1500+
$0.9215
2000+
$0.912
2500+
$0.9025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STTH1002CSF from STMicroelectronics sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. STMicroelectronics's rigorous quality control ensures the STTH1002CSF maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 1.05 V @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 4 µA @ 200 V
- Operating Temperature - Junction: 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277A (SMPC)
