STW20NM60
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 20A TO247-3
$6.65
Available to order
Reference Price (USD)
1+
$6.87000
30+
$5.59667
120+
$5.13450
510+
$4.23361
1,020+
$3.63300
2,520+
$3.47130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the STW20NM60 by STMicroelectronics, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the STW20NM60 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 290mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1500 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 192W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
onsemi
NVBLS4D0N15MC
Infineon Technologies
ISC022N10NM6ATMA1
Renesas Electronics America Inc
RJK1002DPN-A0#T2
Infineon Technologies
BUZ31H3046XKSA1
Fairchild Semiconductor
IRL620A
IXYS
IXFT44N50P
Panjit International Inc.
PJC7407_R1_00001
Vishay Siliconix
SIJ478DP-T1-GE3
STMicroelectronics

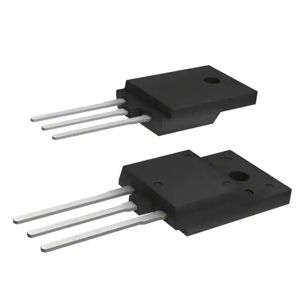

STFW4N150
