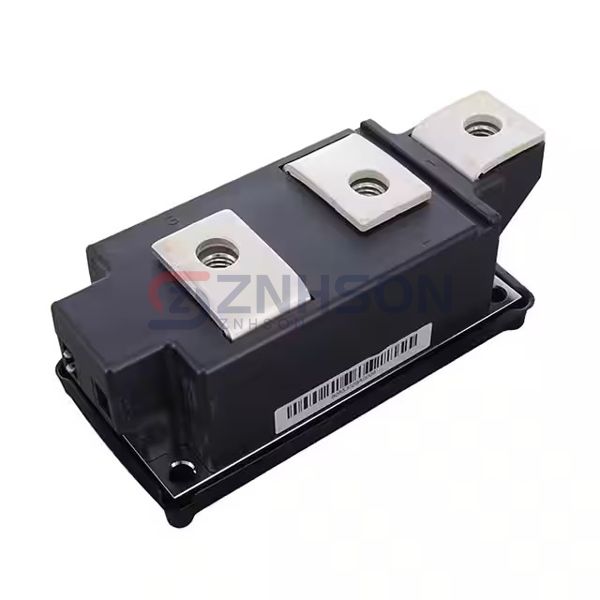

TD520N22KOFTIMHPSA1
Infineon Technologies
Infineon Technologies
THYR / DIODE MODULE DK BG-PB60AT
$394.00
Available to order
Reference Price (USD)
1+
$394.00000
500+
$390.06
1000+
$386.12
1500+
$382.18
2000+
$378.24
2500+
$374.3
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of the TD520N22KOFTIMHPSA1 Thyristors - SCRs - Modules from Infineon Technologies. These discrete semiconductor products are perfect for a wide range of high-power applications, including uninterruptible power supplies (UPS), industrial motor controls, and energy storage systems. Featuring high voltage and current ratings, these modules provide the reliability and precision needed for critical operations. Infineon Technologies's commitment to innovation and quality ensures that these SCR modules meet the highest industry standards, making them the ideal choice for your power control needs.
Specifications
- Product Status: Active
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 2.2 kV
- Current - On State (It (AV)) (Max): 520 A
- Current - On State (It (RMS)) (Max): 1050 A
- Voltage - Gate Trigger (Vgt) (Max): 2.2 V
- Current - Gate Trigger (Igt) (Max): 250 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 18000A @ 50Hz
- Current - Hold (Ih) (Max): 300 mA
- Operating Temperature: 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
