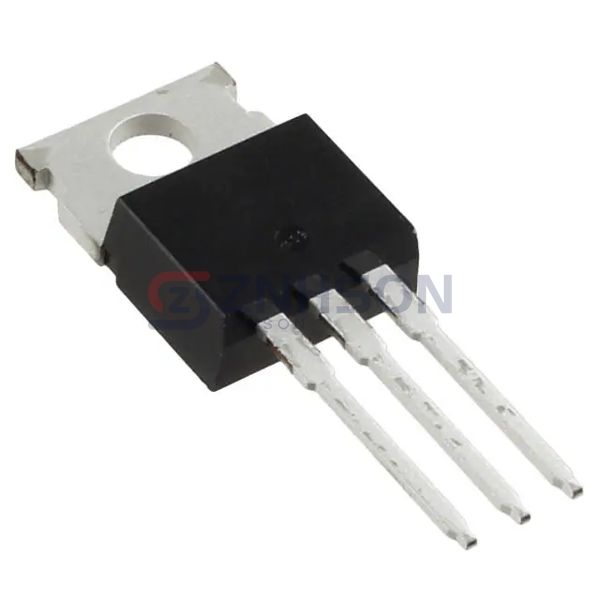

TK3R1E04PL,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 40V 100A TO220
$1.16
Available to order
Reference Price (USD)
1+
$1.74000
50+
$1.40500
100+
$1.26450
500+
$0.98350
1,000+
$0.81490
2,500+
$0.78680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TK3R1E04PL,S1X from Toshiba Semiconductor and Storage, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TK3R1E04PL,S1X ensures reliable performance in demanding environments. Upgrade your circuit designs with Toshiba Semiconductor and Storage's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.8mOhm @ 30A, 4.5V
- Vgs(th) (Max) @ Id: 2.4V @ 500µA
- Gate Charge (Qg) (Max) @ Vgs: 63.4 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4670 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 87W (Tc)
- Operating Temperature: 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
Related Products
Vishay Siliconix
SIRA02DP-T1-GE3
Fairchild Semiconductor
ISL9N302AP3
Infineon Technologies
SPP02N60C3XKSA1
Infineon Technologies
BSS84PH6327XTSA2
Vishay Siliconix
SIS106DN-T1-GE3
Fairchild Semiconductor
FQPF28N15
Infineon Technologies
IRF7420TRPBF
Toshiba Semiconductor and Storage

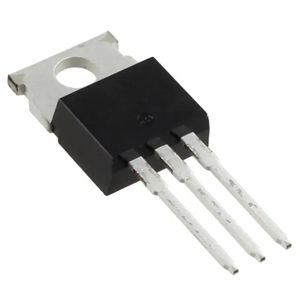

TK72E08N1,S1X
