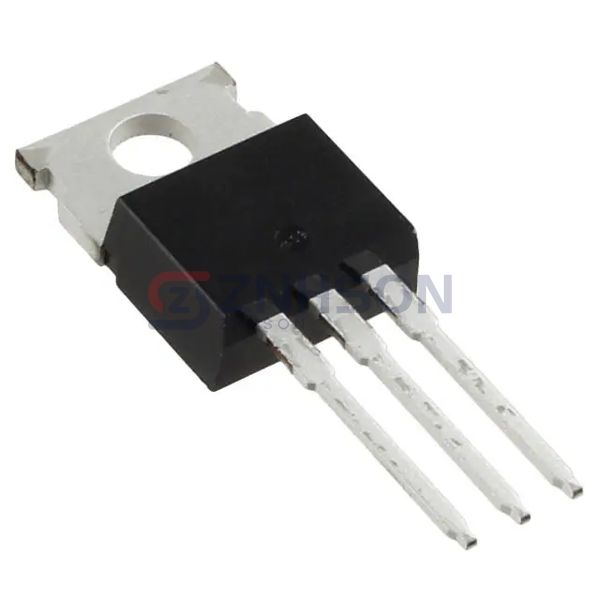

TK72E08N1,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 80V 72A TO220
$2.32
Available to order
Reference Price (USD)
1+
$2.22000
50+
$1.78760
100+
$1.60880
500+
$1.25126
1,000+
$1.03675
2,500+
$1.00100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TK72E08N1,S1X by Toshiba Semiconductor and Storage, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TK72E08N1,S1X is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 72A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.3mOhm @ 36A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 81 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5500 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 192W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
