TLW-105-05-G-D

Samtec Inc.

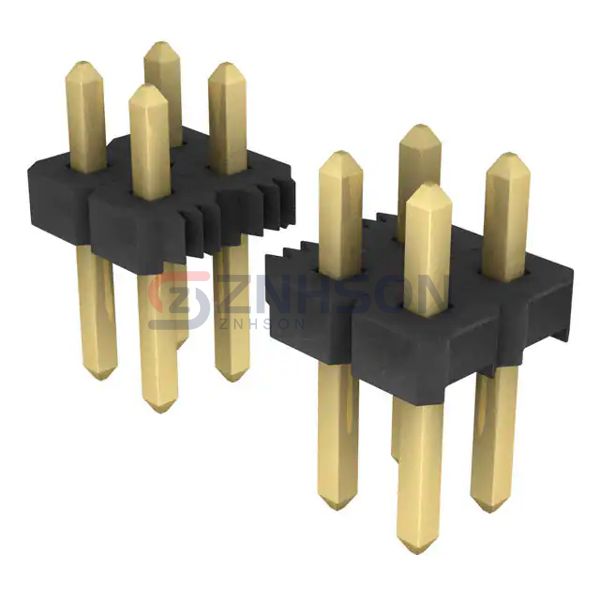

TLW-105-05-G-D Preview
Samtec Inc.
CONN HEADER VERT 10POS 2.54MM
$2.02
Available to order
Reference Price (USD)
1+
$1.87000
10+
$1.69900
25+
$1.59480
50+
$1.52540
100+
$1.45600
250+
$1.31732
500+
$1.21332
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.105" (2.67mm)
  • Contact Length - Post: 0.170" (4.32mm)
  • Overall Contact Length: 0.335" (8.51mm)
  • Insulation Height: 0.060" (1.52mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Gold
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Features: -
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: -
  • Insulation Color: Black
  • Current Rating (Amps): 5.2A per Contact
  • Voltage Rating: -
