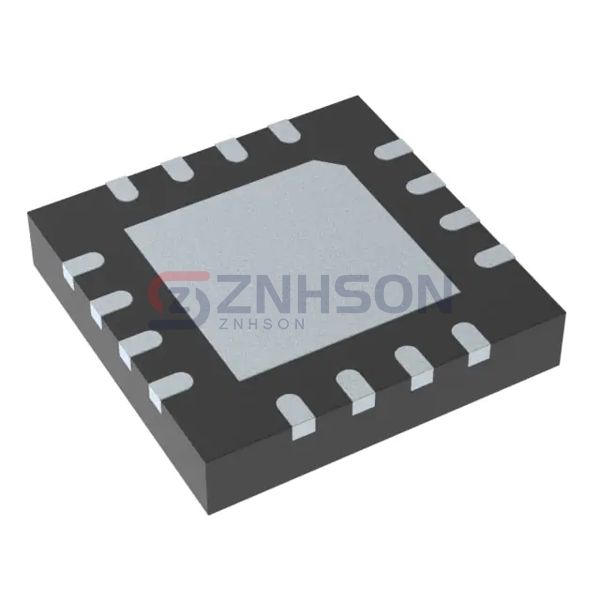

TMUX7209RUMR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC MULTIPLEXER

Datasheet:

TMUX7209RUMR Datasheet

$3.68

Available to order

Reference Price (USD)

$3.68000

500+

$3.6432

1000+

$3.6064

1500+

$3.5696

2000+

$3.5328

2500+

$3.496

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TMUX7209RUMR Analog Switch solution by Texas Instruments, engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The TMUX7209RUMR delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.

Specifications

Product Status: Active
Switch Circuit: 4PST
Multiplexer/Demultiplexer Circuit: 4:1
Number of Circuits: 2
On-State Resistance (Max): 5.5Ohm
Channel-to-Channel Matching (ΔRon): 200mOhm
Voltage - Supply, Single (V+): 4.5V ~ 44V, ±4.5V ~ 22V
Voltage - Supply, Dual (V±): 4.5V ~ 44V, ±4.5V ~ 22V
Switch Time (Ton, Toff) (Max): 205ns, 268ns
-3db Bandwidth: 51MHz
Charge Injection: -5pC
Channel Capacitance (CS(off), CD(off)): 15pF, 67pF
Current - Leakage (IS(off)) (Max): 1nA
Crosstalk: -85dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-WQFN Exposed Pad
Supplier Device Package: 16-WQFN (4x4)

Shopping cart

TMUX7209RUMR

Reference Price (USD)

Specifications

Related Products

DG418DY+

DG212CJ

MAX4052CEE+

MAX4638EUE+T

MUX36S16IRTVR

MAX4800CQI+

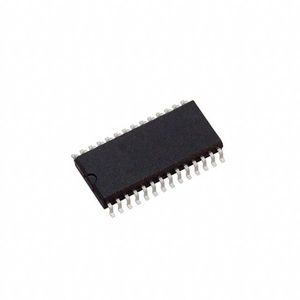

MUX507IDWR

MAX4522EEE+

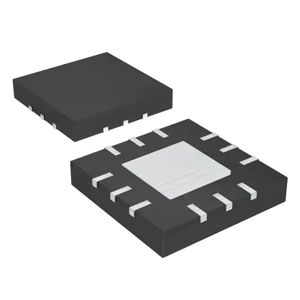

MAX4736EGC+T
