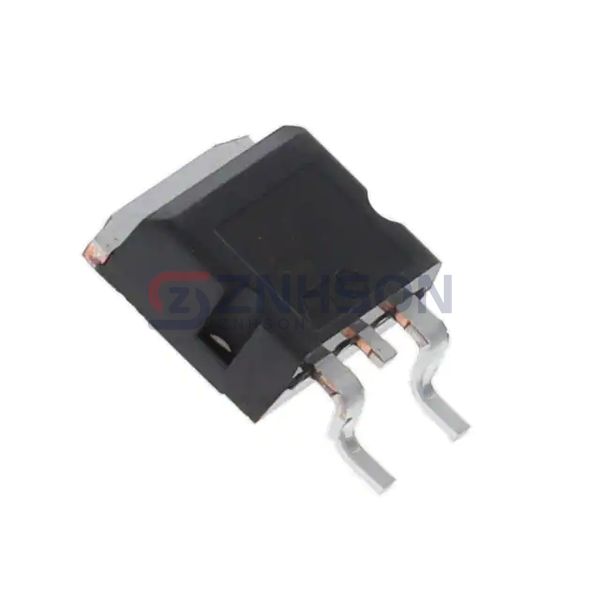

TN4050HP-12G2YTR
STMicroelectronics
STMicroelectronics
1200 V, 40 A AUTOMOTIVE GRADE AE
$4.84
Available to order
Reference Price (USD)
1+
$4.84000
500+
$4.7916
1000+
$4.7432
1500+
$4.6948
2000+
$4.6464
2500+
$4.598
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the TN4050HP-12G2YTR SCR by STMicroelectronics represents the pinnacle of Thyristor technology within Discrete Semiconductor Products. Featuring symmetrical voltage blocking and low holding current, it's ideal for AC switching applications. From home appliances like washing machines to critical infrastructure such as grid stabilization systems, this component shines. STMicroelectronics's rigorous testing protocols ensure the TN4050HP-12G2YTR exceeds performance expectations.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 50 mA
- Voltage - On State (Vtm) (Max): 1.55 V
- Current - On State (It (AV)) (Max): 25 A
- Current - On State (It (RMS)) (Max): 40 A
- Current - Hold (Ih) (Max): 100 mA
- Current - Off State (Max): 5 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 400A, 440A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK HV
