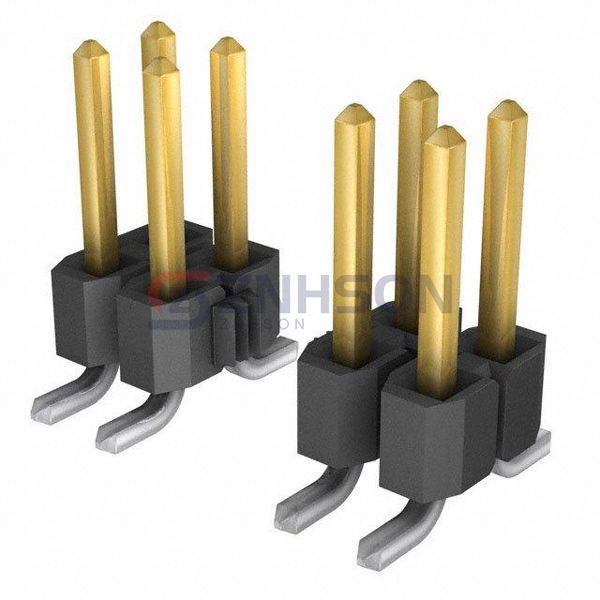

TSM-107-01-F-DV-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 14POS 2.54MM
$2.69
Available to order
Reference Price (USD)
150+
$1.54353
300+
$1.39650
750+
$1.24951
1,050+
$1.10250
1,500+
$1.06575
3,750+
$1.02900
7,500+
$0.97755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-107-01-F-DV-P-TR male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68464-472
Samtec Inc.
TFM-140-32-S-D-A-P-TR
Preci-Dip
894-80-021-10-001101
Samtec Inc.
TSM-120-02-F-DV-P
TE Connectivity AMP Connectors
1-171825-2
Samtec Inc.

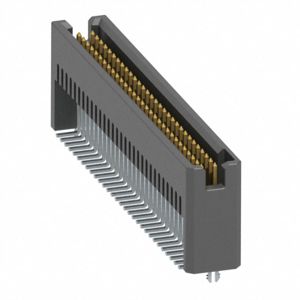

TFM-130-32-SM-D-LC
Samtec Inc.
TFM-120-03-L-D-A
Samtec Inc.

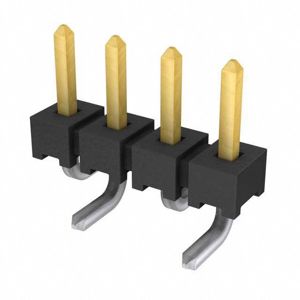

TMM-104-06-L-S-SM
Mill-Max Manufacturing Corp.

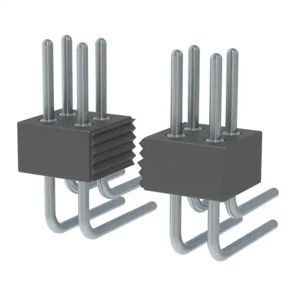

852-40-024-20-001000
