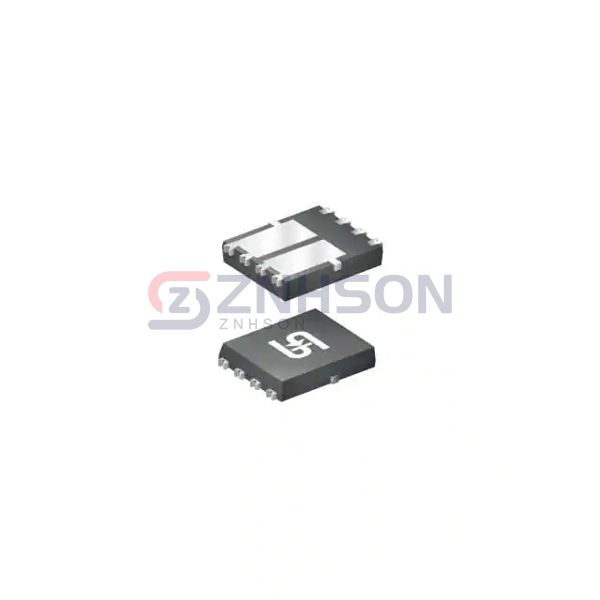

TSM025NH04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 100A, SINGLE N-CHANNEL POWE
$5.29
Available to order
Reference Price (USD)
1+
$5.29000
500+
$5.2371
1000+
$5.1842
1500+
$5.1313
2000+
$5.0784
2500+
$5.0255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TSM025NH04CR RLG single MOSFET from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Taiwan Semiconductor Corporation's TSM025NH04CR RLG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 59 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: -
- FET Feature: -
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
