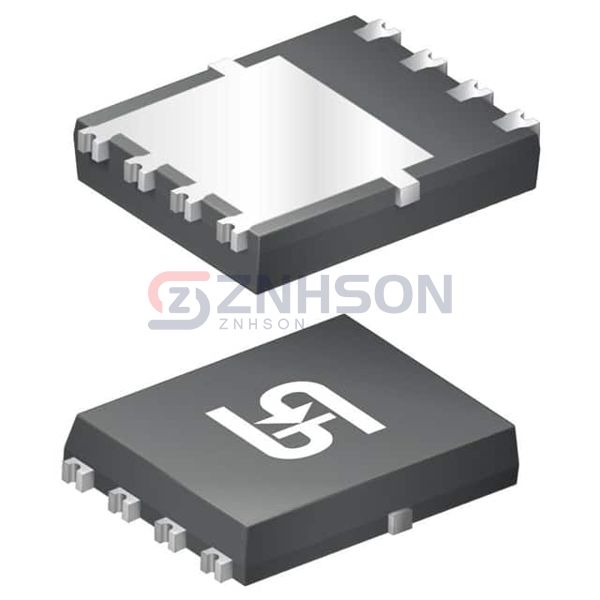

TSM056NH04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$3.16
Available to order
Reference Price (USD)
1+
$3.16000
500+
$3.1284
1000+
$3.0968
1500+
$3.0652
2000+
$3.0336
2500+
$3.002
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM056NH04CR RLG by Taiwan Semiconductor Corporation is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TSM056NH04CR RLG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 18A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 5.6mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1942 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 78.9W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
Related Products
onsemi
CPH6614-TL-E
Nexperia USA Inc.
BUK9616-75B,118
Rohm Semiconductor
RF4E075ATTCR
NXP Semiconductors
BUK762R6-40E,118
Infineon Technologies
BSC0906NSATMA1
Vishay Siliconix
SQ2318AES-T1_BE3
Renesas Electronics America Inc
2SK3377-ZK-E1-AY
Fairchild Semiconductor
FDU8896
Infineon Technologies

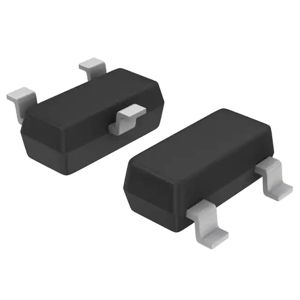

IRFML8244TRPBF
