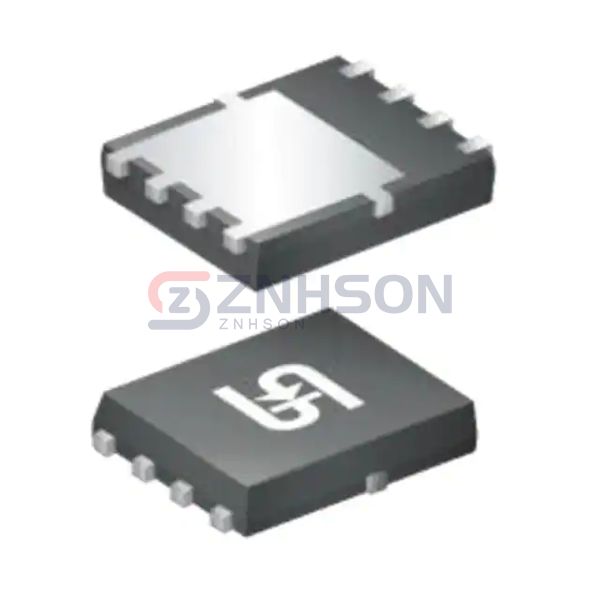

TSM070NA04LCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 91A 8PDFN
$0.90
Available to order
Reference Price (USD)
2,500+
$0.38248
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSM070NA04LCR RLG from Taiwan Semiconductor Corporation, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TSM070NA04LCR RLG ensures reliable performance in demanding environments. Upgrade your circuit designs with Taiwan Semiconductor Corporation's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 91A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 23.5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1469 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 113W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Rectron USA
RM2301E
Fairchild Semiconductor
IRFR110ATM
Infineon Technologies
BSC026N02KSG
onsemi
FCPF11N60NT
Texas Instruments
CSD18535KTTT
onsemi
NTMFS4C020NT1G
onsemi
NTB23N03RG
IXYS

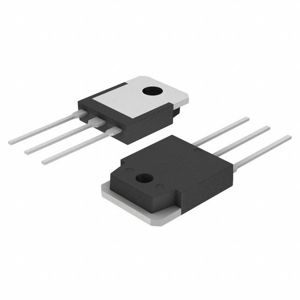

IXTQ150N15P
