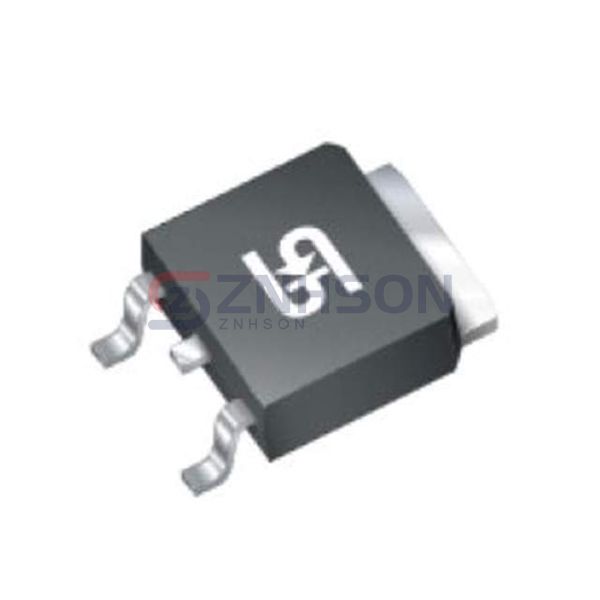

TSM120N06LCP ROG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 60V 70A TO252
$2.24
Available to order
Reference Price (USD)
2,500+
$0.26042
5,000+
$0.25144
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TSM120N06LCP ROG by Taiwan Semiconductor Corporation, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TSM120N06LCP ROG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Taiwan Semiconductor Corporation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 12mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 37 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2118 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 125W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252, (D-Pak)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
Infineon Technologies
SPB04N60C3ATMA1
STMicroelectronics
STF12NK60Z
Infineon Technologies
BSP318SH6327XTSA1
IXYS
IXTP48N20T
Rohm Semiconductor
R6055VNZ4C13
onsemi
NDD60N360U1-35G
Nexperia USA Inc.

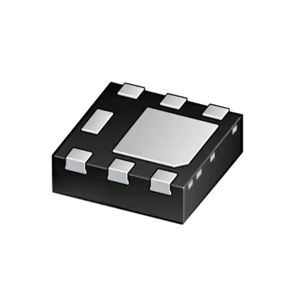

PMPB16EPX
