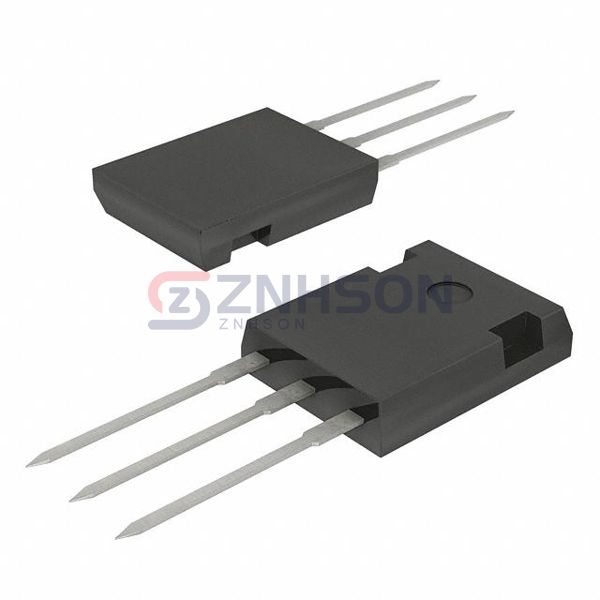

TSM60NB099PW C1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 600V 38A TO247
$15.91
Available to order
Reference Price (USD)
1+
$7.02000
10+
$6.31600
100+
$5.19280
900+
$4.01387
1,800+
$3.92966
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the TSM60NB099PW C1G single MOSFET from Taiwan Semiconductor Corporation. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the TSM60NB099PW C1G combines cutting-edge technology with Taiwan Semiconductor Corporation's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 99mOhm @ 11.7A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 62 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2587 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 329W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247
- Package / Case: TO-247-3
