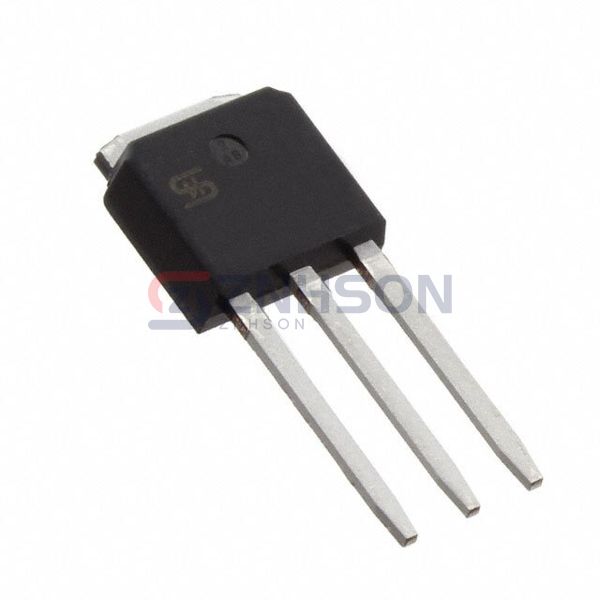

TSM80N1R2CH C5G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 800V 5.5A TO251
$2.93
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.43200
100+
$1.15110
500+
$0.89530
1,875+
$0.74182
3,750+
$0.71624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM80N1R2CH C5G single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TSM80N1R2CH C5G is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 5.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 2.75A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19.4 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 685 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
Infineon Technologies
IPP120P04P4L03AKSA1
Infineon Technologies
IRL40B212
Vishay Siliconix
SUP85N15-21-E3
IXYS
IXFH94N30P3
onsemi
NTLUS4930NTAG
Vishay Siliconix
SIHD6N80E-GE3
Rohm Semiconductor
RW1A020ZPT2R
Toshiba Semiconductor and Storage
SSM3K16CT(TPL3)
Infineon Technologies

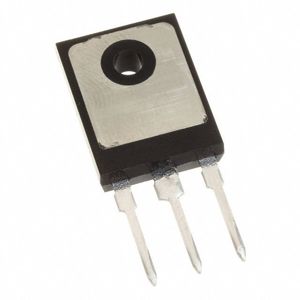

SPW55N80C3FKSA1
