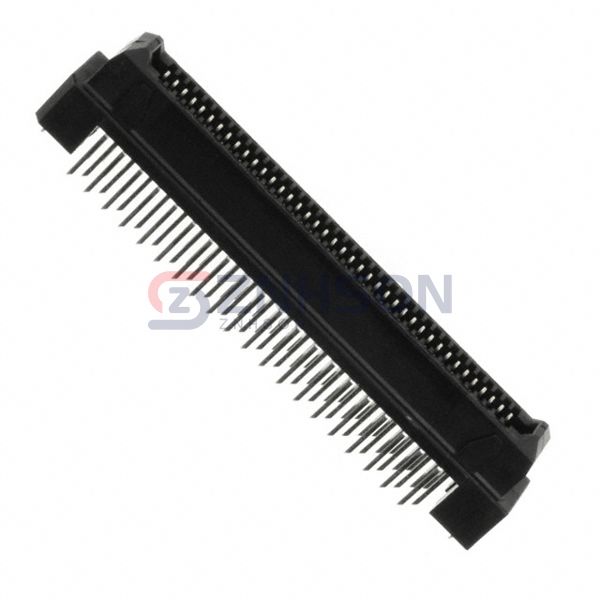

TX24-80R-10ST-H1E
JAE Electronics
JAE Electronics
CONN RCPT 80POS VERT GOLD
$1.91
Available to order
Reference Price (USD)
360+
$1.76700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TX24-80R-10ST-H1E from JAE Electronics is a versatile rectangular connector ideal for array-type board-to-board connections. Featuring a mezzanine design, it provides excellent electrical conductivity and mechanical endurance. These connectors are built to withstand vibrations and thermal cycling, making them suitable for automotive, aerospace, and industrial applications. For instance, they are often found in engine control units, avionics systems, and factory automation gear. Whether you need reliable interconnects for high-speed data or power transmission, TX24-80R-10ST-H1E delivers consistent performance and longevity.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Outer Shroud Contacts
- Number of Positions: 80
- Pitch: 0.050" (1.27mm)
- Number of Rows: 2
- Mounting Type: Through Hole
- Features: Board Lock
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 16mm, 18mm, 22mm
- Height Above Board: 0.563" (14.30mm)
