UC3706DWTR
Texas Instruments
Texas Instruments

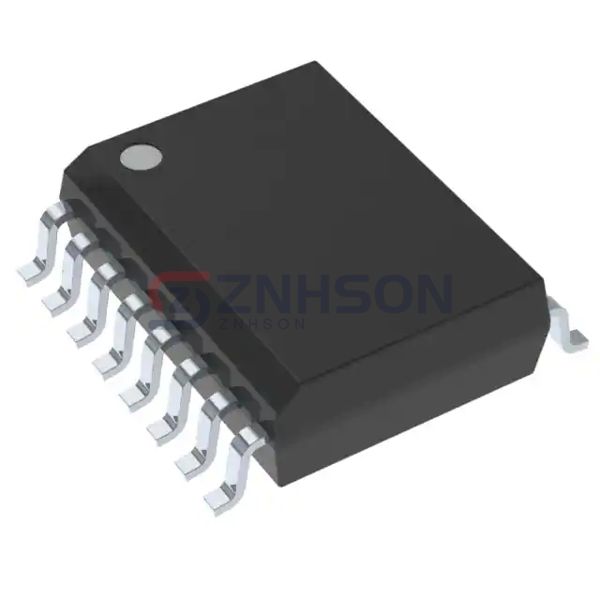

IC GATE DRVR LOW-SIDE 16SOIC
$4.72
Available to order
Reference Price (USD)
2,000+
$3.33450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's UC3706DWTR represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the UC3706DWTR enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 5V ~ 40V
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Current - Peak Output (Source, Sink): 1.5A, 1.5A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 40ns, 30ns
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
