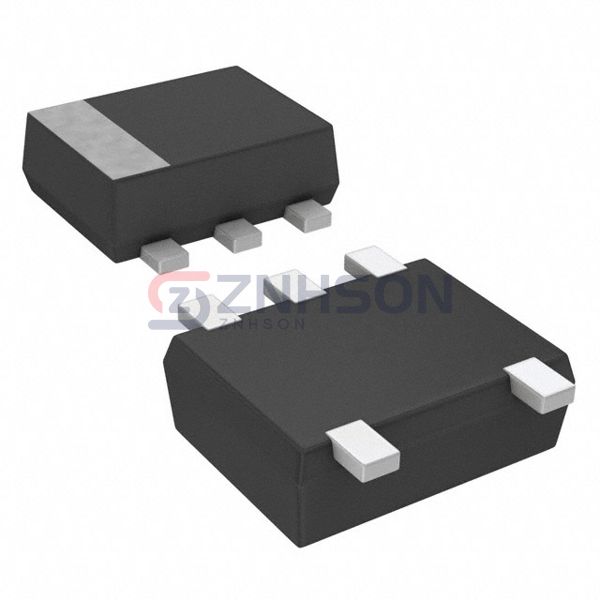

UP0121300L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SSMINI5
$0.26
Available to order
Reference Price (USD)
1+
$0.26000
500+
$0.2574
1000+
$0.2548
1500+
$0.2522
2000+
$0.2496
2500+
$0.247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Panasonic Electronic Components's UP0121300L, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The UP0121300L is widely used in lighting systems, portable electronics, and automotive accessories. Panasonic Electronic Components's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the UP0121300L is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F2
