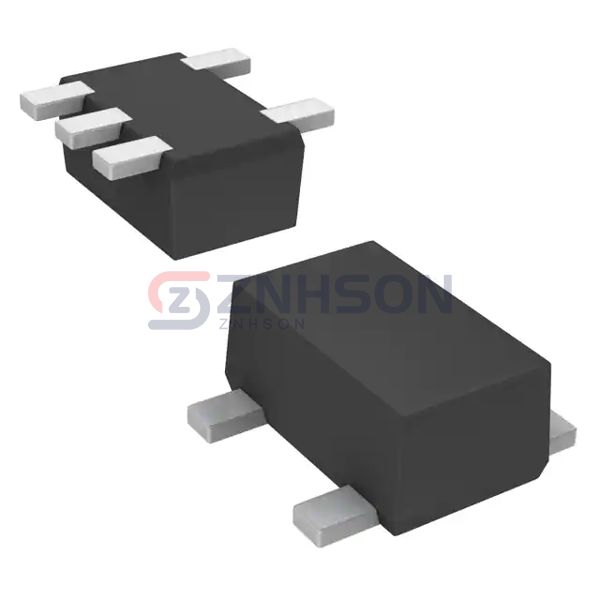

UP01214G0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SSMINI5
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UP01214G0L from Panasonic Electronic Components is a versatile pre-biased BJT array designed to meet the needs of diverse electronic applications. Featuring matched transistors and built-in resistors, this product enhances circuit performance while reducing design complexity. It is commonly used in audio amplifiers, power converters, and automotive electronics. Panasonic Electronic Components's commitment to quality ensures that the UP01214G0L operates flawlessly in both commercial and industrial settings. With its excellent thermal performance and high reliability, this transistor array is an essential component for any engineer's toolkit.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F3
