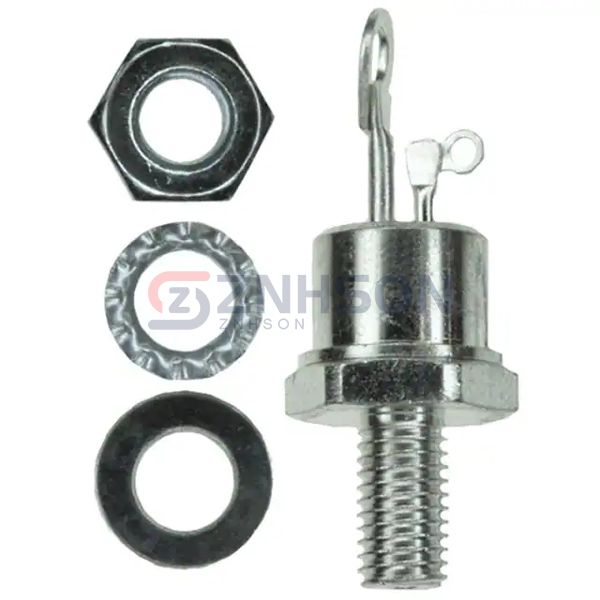

VS-2N5205
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 800V 35A TO208AA
$13.72
Available to order
Reference Price (USD)
100+
$12.94550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-2N5205 Thyristor - SCR by Vishay General Semiconductor - Diodes Division is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With Vishay General Semiconductor - Diodes Division's commitment to quality, the VS-2N5205 guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2.3 V
- Current - On State (It (AV)) (Max): 22 A
- Current - On State (It (RMS)) (Max): 35 A
- Current - Hold (Ih) (Max): 200 mA
- Current - Off State (Max): 2.5 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 285A, 300A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis, Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-208AA (TO-48)
