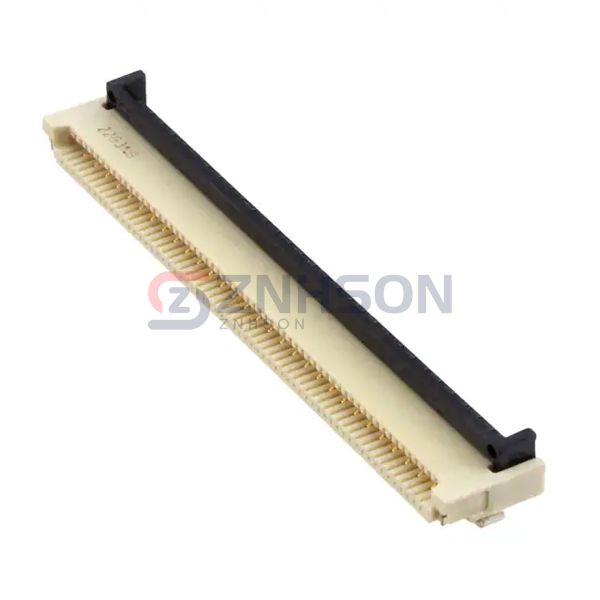

XF3M-2815-1B-R100

Omron Electronics Inc-EMC Div

Manufacturer

Omron Electronics Inc-EMC Div

Description:

CONN FFC FPC 28POS 0.50MM R/A

Datasheet:

XF3M-2815-1B-R100 Datasheet

$3.11

Available to order

Reference Price (USD)

$3.10860

500+

$3.077514

1000+

$3.046428

1500+

$3.015342

2000+

$2.984256

2500+

$2.95317

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The XF3M-2815-1B-R100 FFC/FPC Connectors by Omron Electronics Inc-EMC Div redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the XF3M-2815-1B-R100 delivers consistent performance. Omron Electronics Inc-EMC Div's innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select XF3M-2815-1B-R100 for a connector that bridges innovation and practicality in your applications.

Specifications

Product Status: Active
Flat Flex Type: FFC, FPC
Mounting Type: Surface Mount, Right Angle
Connector/Contact Type: Contacts, Top and Bottom
Number of Positions: 28
Pitch: 0.020" (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079" (2.00mm)
Locking Feature: Rotary Lock, Backlock
Cable End Type: Tapered
Contact Material: Copper Alloy
Contact Finish: Gold
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Features: Solder Retention
Voltage Rating: 50V
Operating Temperature: -30°C ~ 85°C
Material Flammability Rating: UL94 V-0

Shopping cart

XF3M-2815-1B-R100

Reference Price (USD)

Specifications

Related Products

2-1734839-8

ZF1-30-01-T-WT

66226-015LF

1734248-9

SFW26R-3STE1LF

10051922-0810EHLF

59453-071110ECHLF

AYF333135A

65801-013LF

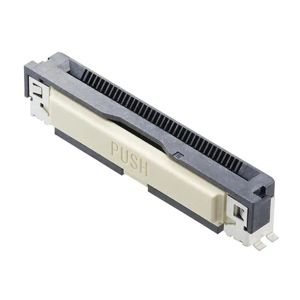

2004850760
