ZF1-30-01-T-WT
Samtec Inc.
Samtec Inc.
ZERO INSERTION FORCE 1MM ASSY
$2.30
Available to order
Reference Price (USD)
1+
$1.41000
15+
$1.23667
30+
$1.16400
60+
$1.11550
105+
$1.06705
255+
$0.97000
510+
$0.87300
1,005+
$0.77600
2,505+
$0.70325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the ZF1-30-01-T-WT FFC/FPC Connectors from Samtec Inc., where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The ZF1-30-01-T-WT series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Samtec Inc.'s eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for ZF1-30-01-T-WT when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 30
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-2
Related Products
Amphenol ICC (FCI)
66226-015LF
TE Connectivity AMP Connectors
1734248-9
Amphenol ICC (FCI)

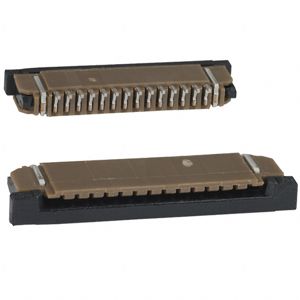

SFW26R-3STE1LF
Amphenol ICC (FCI)
10051922-0810EHLF
Amphenol ICC (FCI)
59453-071110ECHLF
Panasonic Electric Works
AYF333135A
Amphenol ICC (FCI)
65801-013LF
Molex
2004850760
Molex

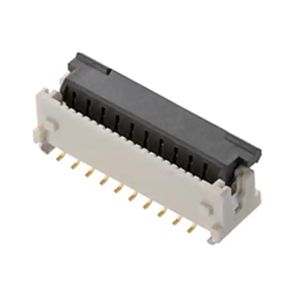

5019515030
