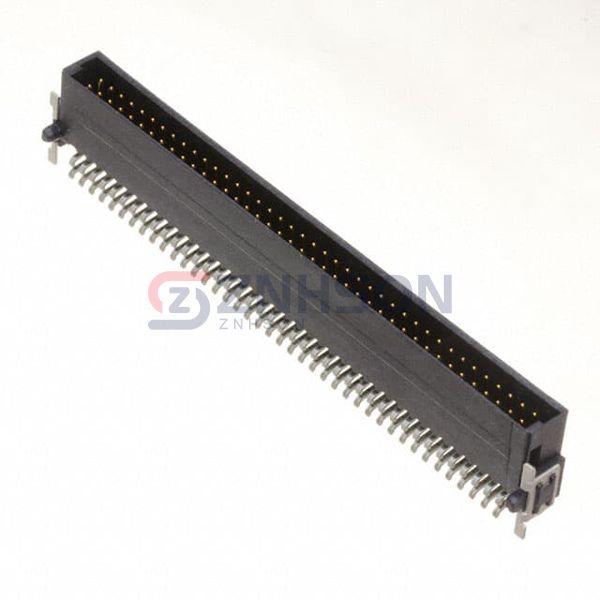

XH5A-8015-N

Omron Electronics Inc-EMC Div

Manufacturer

Omron Electronics Inc-EMC Div

Description:

PLUG, RIGHT-ANGLE, SMT PINS

Datasheet:

XH5A-8015-N Datasheet

$9.02

Available to order

Reference Price (USD)

$9.02000

500+

$8.9298

1000+

$8.8396

1500+

$8.7494

2000+

$8.6592

2500+

$8.569

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the XH5A-8015-N rectangular connector header from Omron Electronics Inc-EMC Div. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the XH5A-8015-N meets the highest industry standards. Omron Electronics Inc-EMC Div provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.050" (1.27mm)
Number of Positions: 80
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: -
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.167" (4.25mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP)
Features: Board Guide, Solder Retention
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: 100VAC
