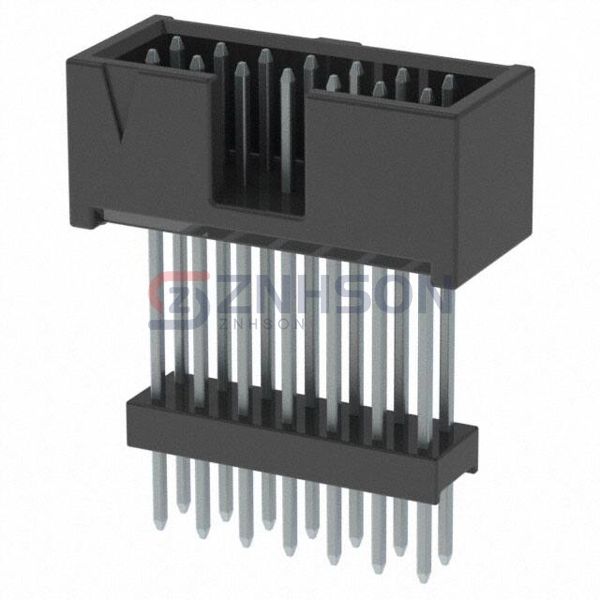

ZSS-107-05-T-D-841
Samtec Inc.
Samtec Inc.
CONN HDR .100" 14POS
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-107-05-T-D-841 by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the ZSS-107-05-T-D-841 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.189" (4.80mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.841" (21.36mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
95278-101B44LF
Sullins Connector Solutions
SWR201-NRTN-S06-HM-BG
Preci-Dip
894-70-084-10-003101
Samtec Inc.
FWJ-06-04-T-S
Oupiin
2011-1X02G00RB
Samtec Inc.
ZSS-115-02-G-D-630
Amphenol ICC (FCI)
68602-226HLF
Samtec Inc.

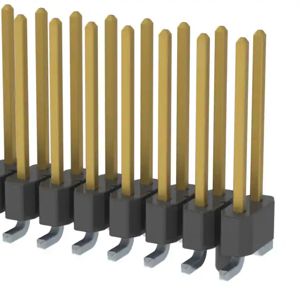

TSM-119-03-F-DV-A
Mill-Max Manufacturing Corp.

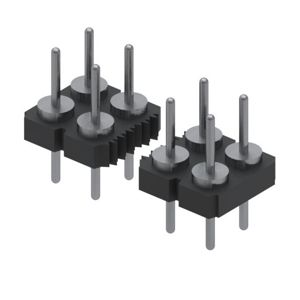

435-40-244-00-160000
