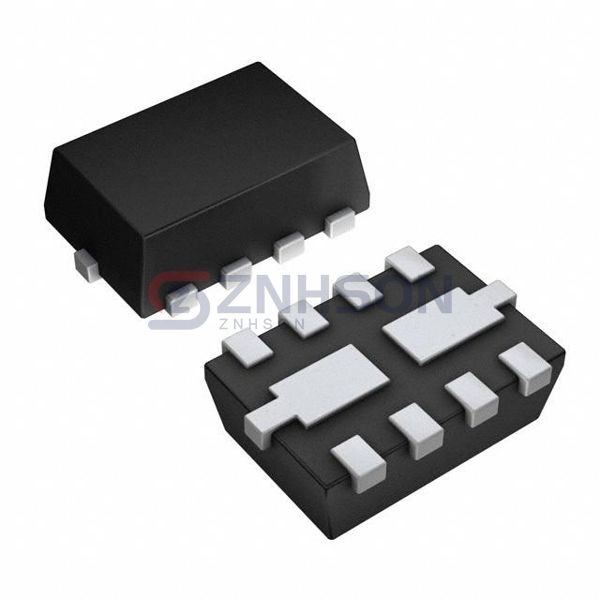

ZXTDB2M832TA
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP 20V 4.5A/3.5A 8MLP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your BOM with the ZXTDB2M832TA by Diodes Incorporated, a cost-effective BJT Array without compromising quality. This general-purpose Discrete Semiconductor Product suits universal motor controls, lighting dimmers, and security system triggers. Educational institutions and prototyping labs favor its breadboard-friendly pinout. The ZXTDB2M832TA includes built-in reverse polarity protection, safeguarding circuits during accidental miswiring in field installations.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 4.5A, 3.5A
- Voltage - Collector Emitter Breakdown (Max): 20V
- Vce Saturation (Max) @ Ib, Ic: 270mV @ 125mA, 4.5A, 300mV @ 350mA, 3.5A
- Current - Collector Cutoff (Max): 25nA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 2A, 2V / 150 @ 2A, 2V
- Power - Max: 1.7W
- Frequency - Transition: 140MHz, 180MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-MLP (3x2)
Related Products
Central Semiconductor Corp
MMPQ3904 TR13
Diodes Incorporated
MMDT4403-7
Rohm Semiconductor
IMX3T108
Diodes Incorporated
MMDT2227-7
STMicroelectronics
STD830CP40
Toshiba Semiconductor and Storage
HN3A51F(TE85L,F)
Diodes Incorporated
MMDT2222A-7
Renesas Electronics America Inc
CA3083
Texas Instruments

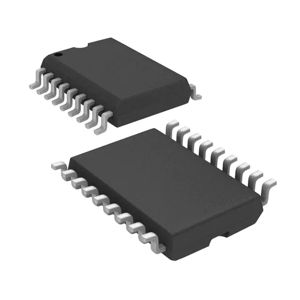

ULN2803ADWG4
