Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
09052482854
CONN DIN RCPT 48POS PCB GOLD
86093968114755V1LF
CONN DIN RCPT 96POS PCB GOLD
09231486921

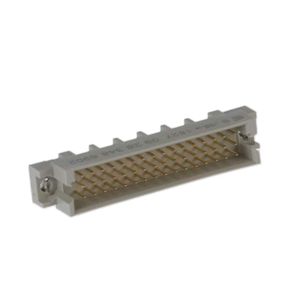

CONN DIN HDR 48POS PCB RA GOLD
XC5B14313BYOMR
CONN DIN RCPT 14POS PCB
09032786804
CONN DIN RCPT 80POS PCB
09031326941
DIN-SIGNAL C032MS-3 0C1-2
09021322921
CONN DIN HDR 64POS PCB RA
535059-4

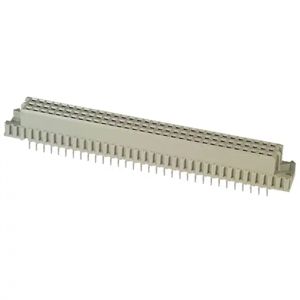

CONN DIN RCPT 96POS PCB GOLD
09062486832

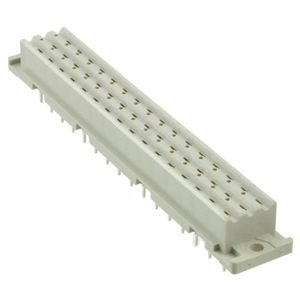

CONN DIN RCPT 48POS PCB
02011608101

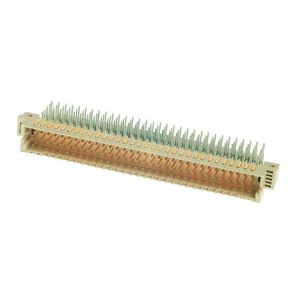

CONN DIN HDR 160POS PCB RA GOLD
09062327823

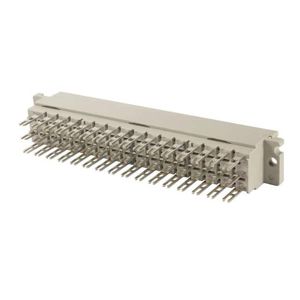

CONN DIN RCPT 48POS IN-LINE GOLD
09731966904
CONN DIN HDR 96POS PNL MNT GOLD
294722

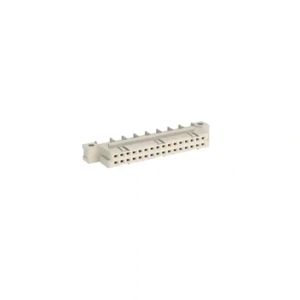

DIN Q2 32POS F SLDR RA CL2
5650462-4

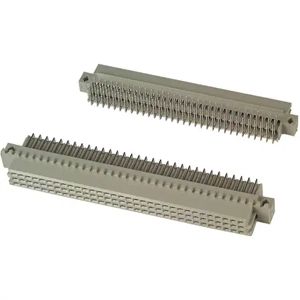

CONN DIN RCPT 96POS PCB RA GOLD
09033322921
CONN DIN HDR 96POS PCB RA GOLD
09283486902
CONN DIN HDR PCB GOLD-PALLADIUM
09032964850

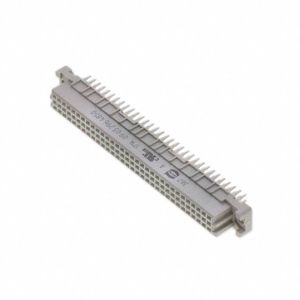

CONN DIN RCPT 96POS PCB GOLD
