Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

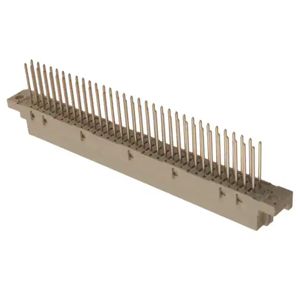

09022646821
CONN DIN RCPT 64POS PNL MNT

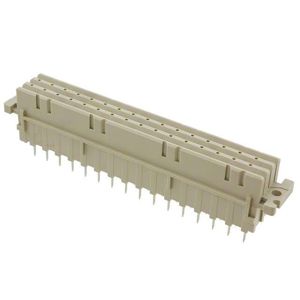

09062326835
CONN DIN RCPT 48POS PCB GOLD

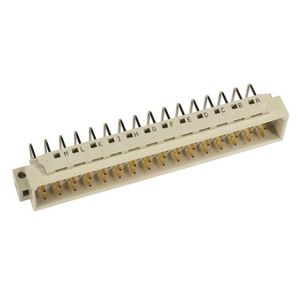

09056486931
CONN DIN HDR 48POS PCB RA

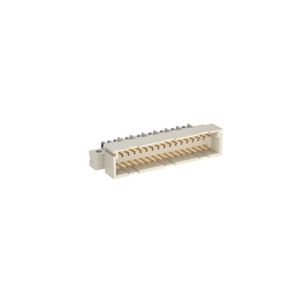

384210
DIN C2 32POS M SLDR RA CL2

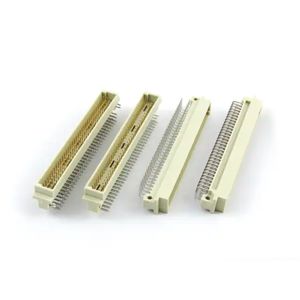

9001-11961C00L1A/A016
DIN41612, MALE, 96 PIN, WITH BOA

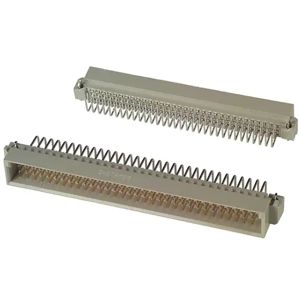

536405-5
CONN DIN PLUG 96POS PCB RA GOLD

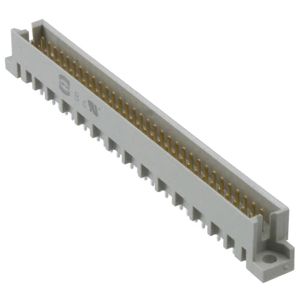

09721646902
CONN DIN HDR 64POS PNL MNT GOLD

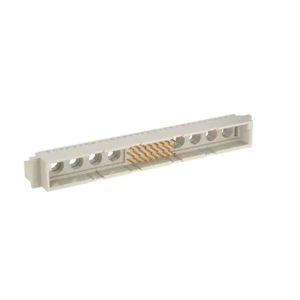

374144
DIN M 24POS M SLDR RA CL1

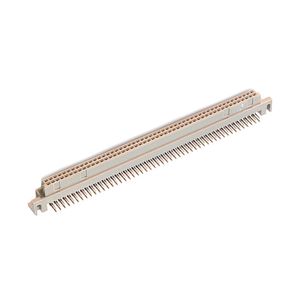

PCN10C-100S-2.54DS(72)
CONN DIN RCPT 100POS PCB RA GOLD

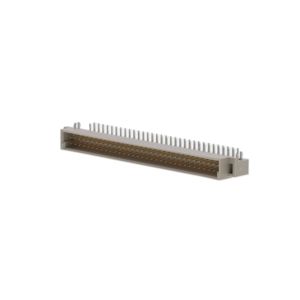

09023646921
CONN DIN HDR 64POS PCB RA

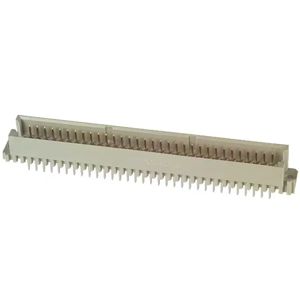

650933-5
CONN DIN PLUG 96POS PCB GOLD
5536416-5
CONN DIN PLUG 96POS PCB RA GOLD

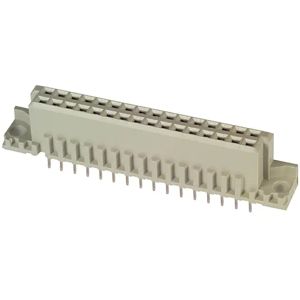

650858-5
CONN DIN RCPT 32POS PCB GOLD

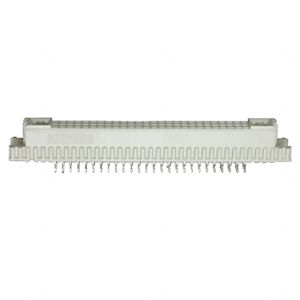

148417-5
CONN DIN RCPT 80POS PCB GOLD

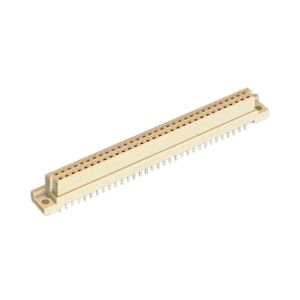

PCN13-64S-2.54DSA(71)
CONN DIN RCPT 64POS PCB GOLD

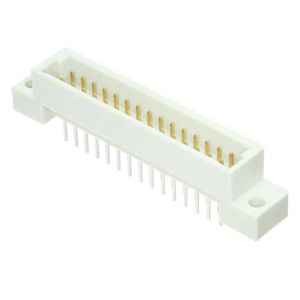

XC5E20812ABYOMR
CONN DIN PLUG 20POS

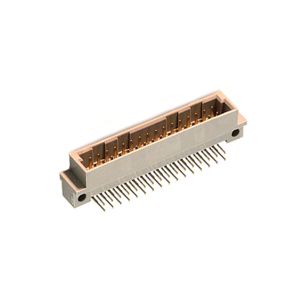

PCN10A-32P-2.54DS(72)
CONN DIN HDR 32POS PCB RA GOLD

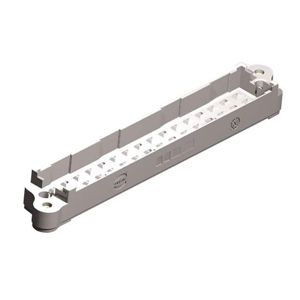

09060029921
DIN F SHROUD W/ PRESS-IN NUTS W

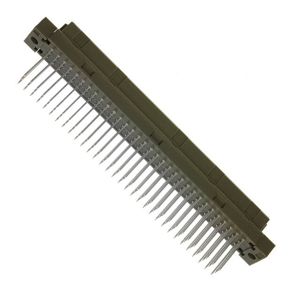

PCN10-96S-2.54WB(72)
CONN DIN RCPT 96POS PCB GOLD

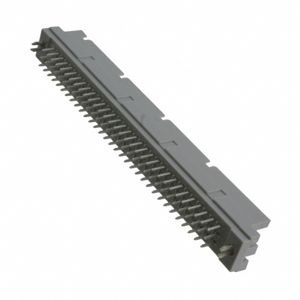

DIN-096RPC-R1-HM
CONN DIN PLUG 96POS PCB GOLD
