Backplane Connectors - DIN 41612
Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
XC5B01310ABYOMR
CONN DIN RCPT 100POS PCB
PCN10C-64S-2.54DS(72)
CONN DIN RCPT 64POS PCB RA GOLD
09034326824
CONN DIN RCPT 96POS PCB GOLD
148292-5
CONN DIN RCPT 96POS PCB RA GOLD
121B10409X
CONN DIN HDR 48POS PCB GOLD
5650466-5
CONN DIN RCPT 48POS PCB GOLD
148020-5
CONN DIN HDR 48POS PCB RA
PCN10-64ACS-2.54DSA(72)
CONN DIN RCPT 96POS PCB GOLD
09031606922
CONN DIN HDR 64POS PCB GOLD
09031326922
DIN-SIGNAL C032MS-3 0C1-2
09051482921
CONN DIN HDR 48POS PCB RA GOLD
122A11139X
CONN DIN RCPT 64POS PCB GOLD
1-1393644-6
CONN DIN PLUG 96POS PCB RA GOLD
09033646921
CONN DIN HDR 96POS PCB RA
09232486821
CONN DIN RCPT 48POS PCB
09061152991
CONN DIN HDR 15POS PCB RA GOLD
09062486823
CONN DIN RCPT 48POS PNL MNT
374000
DIN R 96 POS M SLDR 4.0MM CL2

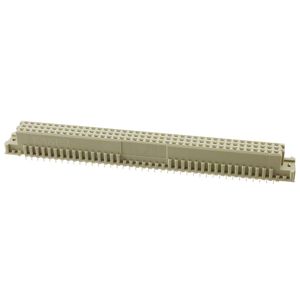

536494-5
CONN DIN RCPT 120POS PCB GOLD

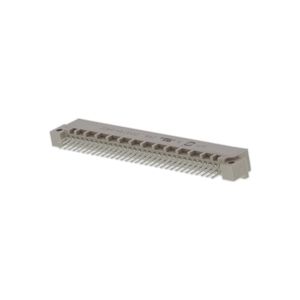

09032606864
CONN DIN RCPT 64POS PCB
