Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
09021646952
CONN DIN HDR 64POS PCB GOLD
09736646947
CONN DIN HDR 96POS PCB GOLD
02011602102
CONN DIN HDR 160POS PCB RA
166733-1
CONN DIN RCPT 48POS PNL MNT GOLD
09231486919
CONN DIN HDR 48POS PCB RA GOLD
9001-16482C00T-S
DIN41612, FEMALE, HALF C TYPE, 4
09060152922
CONN DIN HDR 15POS PNL MNT
09062486833
CONN DIN RCPT 48POS PCB
364921
DIN R2 48POS M SLDR 4.0MM CL2
XC5A-2022A
CONN DIN PLUG 20POS PCB RA GOLD

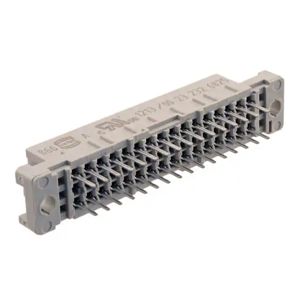

09232326825
CONN DIN RCPT 48POS PCB

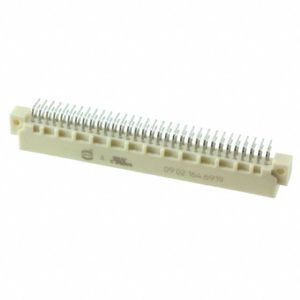

09021646919
CONN DIN HDR 64POS PCB RA GOLD

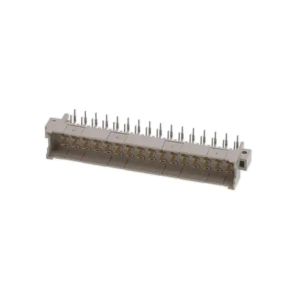

09061327901
CONN DIN HDR 48POS PCB RA GOLD

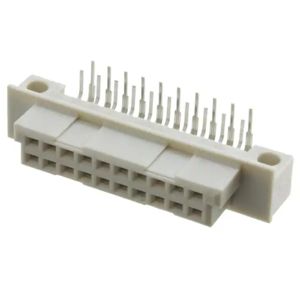

XC5F-0122
CONN DIN RCPT 100POS PCB RA GOLD

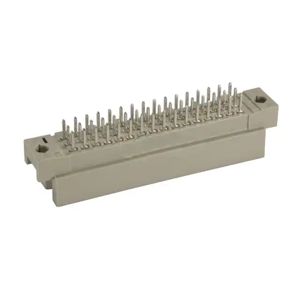

09281486902
CONN DIN HDR 48POS PCB GOLD

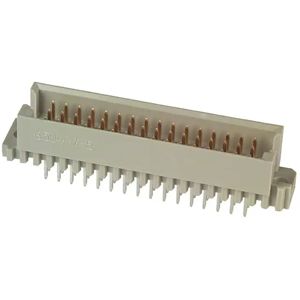

650477-5
CONN DIN PLUG 48POS PCB GOLD

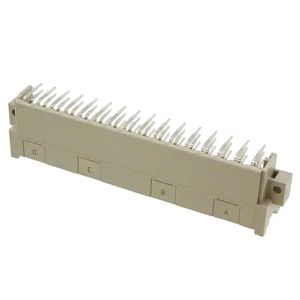

09061487901
CONN DIN HDR 48POS PCB RA

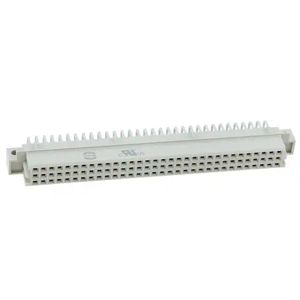

09732967801
CONN DIN RCPT 96POS PCB RA GOLD

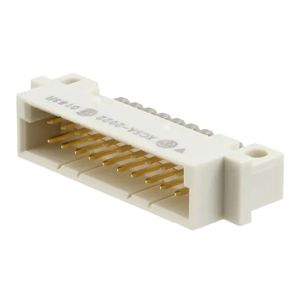

XC5A4422ABYOMR
CONN DIN PLUG 44POS PCB RA

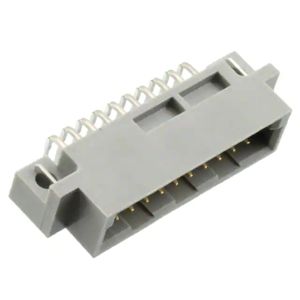

PCN10EA-20P-2.54DS(72)
CONN DIN HDR 20POS PCB RA GOLD
