Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
09062326845
CONN DIN RCPT 48POS PCB GOLD
09721646907
CONN DIN HDR 64POS PCB GOLD
09061322921
CONN DIN HDR 32POS PCB RA GOLD
PCN10HA-50P-2.54DSA(72)
CONN DIN HDR 50POS PCB GOLD

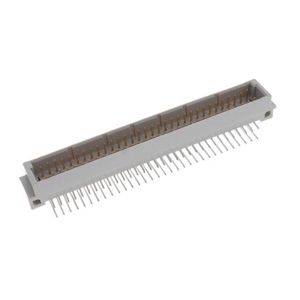

0850033134
CONN DIN HDR 64POS PCB RA GOLD

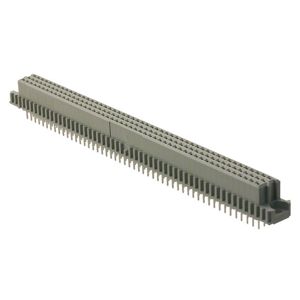

5148460-1
CONN DIN RCPT 150POS PCB GOLD

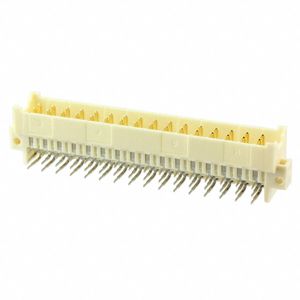

09061486951
CONN DIN HDR 48POS PCB RA GOLD

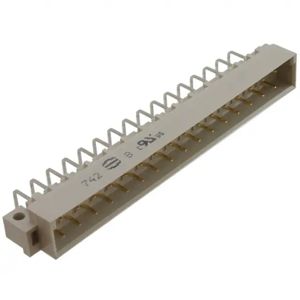

09041327921
CONN DIN HDR 32POS PCB RA GOLD

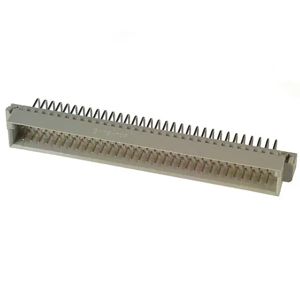

5650951-5
CONN DIN PLUG 96POS PCB RA GOLD

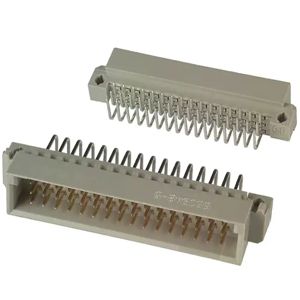

650478-5
CONN DIN PLUG 48POS PCB RA GOLD

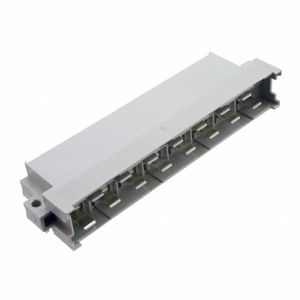

09061152921
CONN DIN HDR 15POS PCB RA

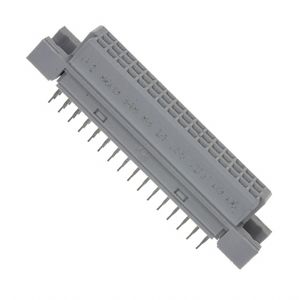

86093488314755V1LF
CONN DIN RCPT 48POS PCB GOLD

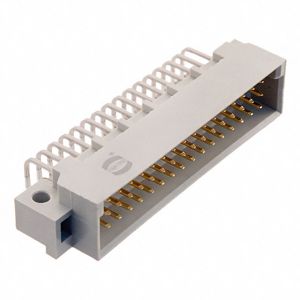

09231482921
CONN DIN HDR 48POS PCB RA GOLD

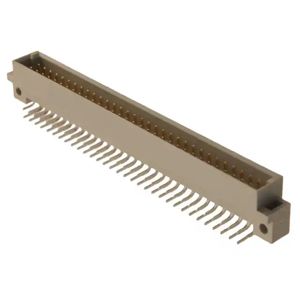

09026646921
CONN DIN HDR 64POS PCB RA

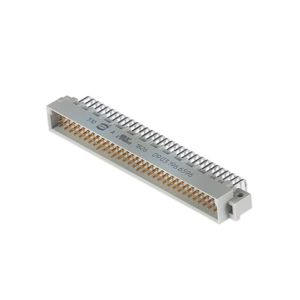

09031966596
DIN-SIGNAL C096MS-3 0C1-2-V9

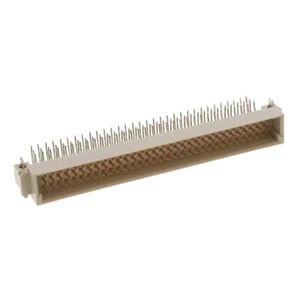

536366-5
CONN DIN PLUG 96POS PCB RA GOLD

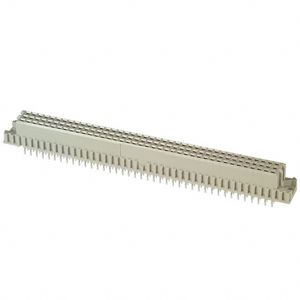

535079-5
CONN DIN RCPT 120POS PCB GOLD

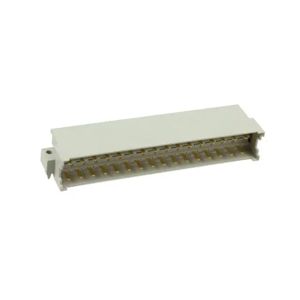

2-164306-4
CONN DIN PLUG 48POS PCB RA GOLD
5650860-5
CONN DIN RCPT 64POS PCB GOLD

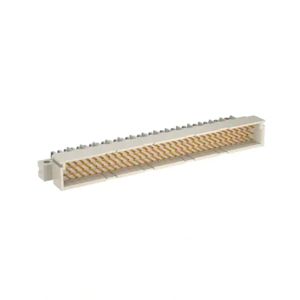

364915
DIN C 96POS M SLDR RA CL2
