Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
FCR6381B
4MM PLUG P14XASR BLACK
CT3134-0
CONN BANANA JACK SLDRLESS BLACK
108-0307-001
CONN BANANA PLUG SLDRLESS YELLOW
105-0603-001
CONN TIP JACK TURRET BLACK
BU-32614-6
CONN BANANA PLUG STACK SLDR BLUE
108-0304-001
CONN BANANA PLUG SLDRLESS GREEN
3265
CONN BANANA PLUG THRD
1325-1
CONN BANANA PLUG STACK SLDRLESS
6074-1
CONN BANANA PLUG THRD

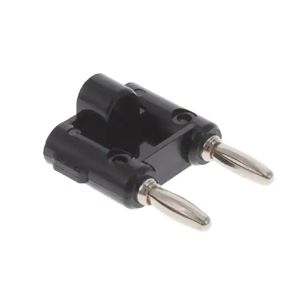

BU-PMDP-0
CONN DBL BAN PLUG STACK SLDRLESS

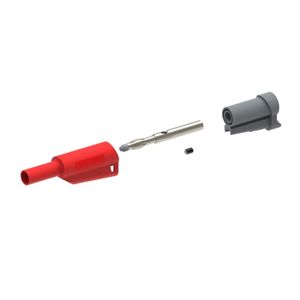

CT2631-2
CONN BANANA PLUG STACK SCREW RED

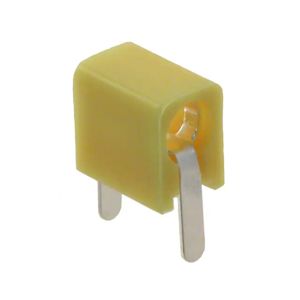

105-1107-001
CONN TIP JACK SOLDER YELLOW

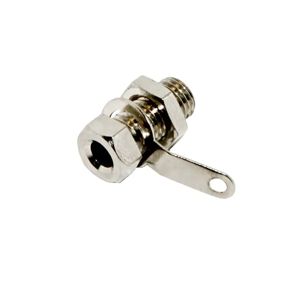

BU-00232
CONN BANANA JACK SOLDER LUG

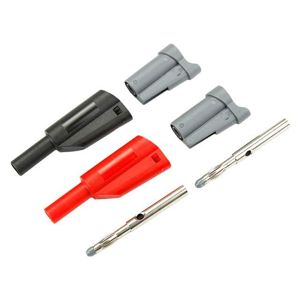

CT3206
CONN BAN PLUG STACK SLDRLESS 2PC

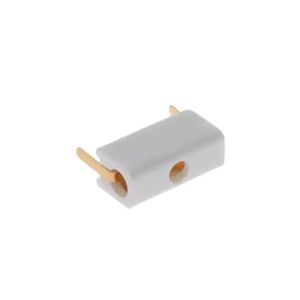

105-0751-150
CONN TIP JACK SOLDER WHITE

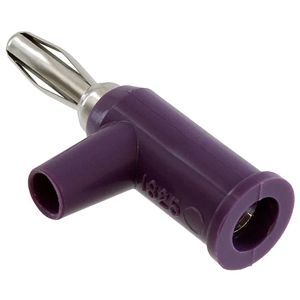

1825-7
CONN BANANA PLUG STACK SLDRLESS

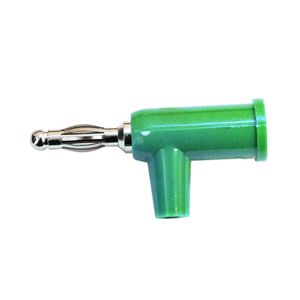

BU-P1825-5
CONN BANANA PLUG STACK SLDRLESS

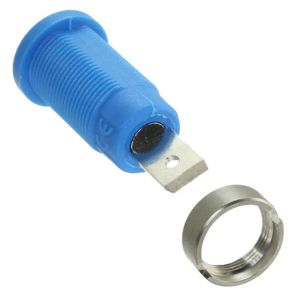

CT2238-6
CONN BANANA JACK QC BLUE

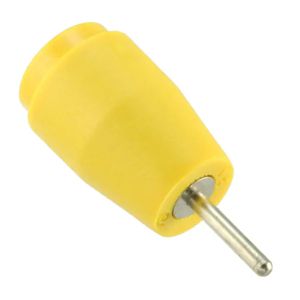

CT3149-4
CONN BANANA JACK SOLDER YELLOW

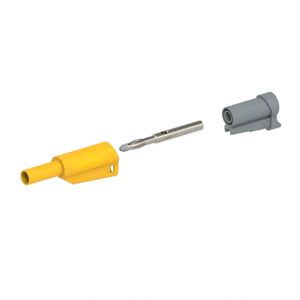

CT2631-S-4
CONN BANANA PLUG STACK SLDR YLW
