Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
MDP-4#
CONN DBL BAN PLUG STACK SLDRLESS

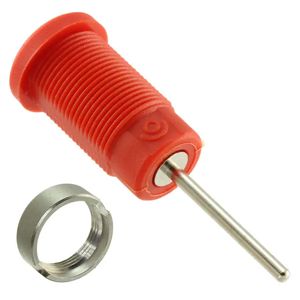

CT2906-2
CONN BANANA JACK SOLDER RED

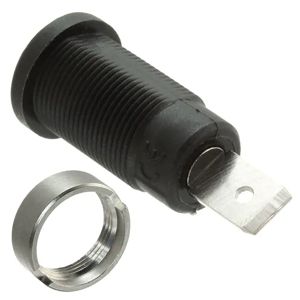

CT2238-0
CONN BANANA JACK QC BLACK

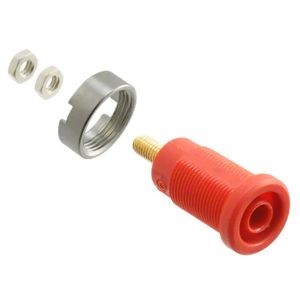

72912-2
CONN BANANA JACK THRD RED
MDP-2
CONN DBL BAN PLG STACK SLDRLESS

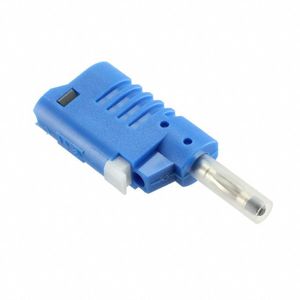

CT2017-6
CONN BANANA PLUG STACK SLDRLESS

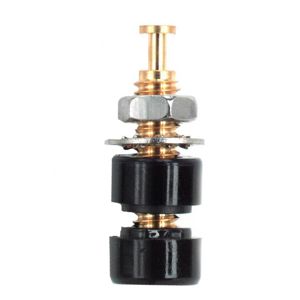

2142-0
CONN BANANA JACK MINI TURRET BLK

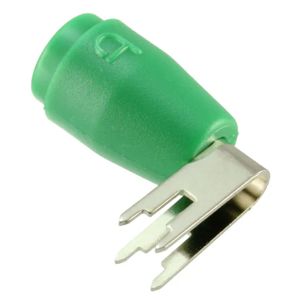

CT3151-5
CONN BANANA JACK SOLDER GREEN

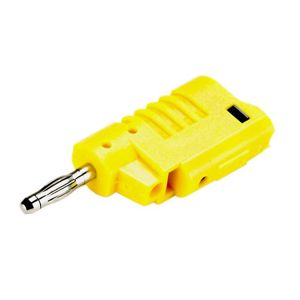

CT2013-4
CONN BANANA PLUG STACK SLDRLESS
9202-S
CONN BANANA PLUG SLDRLESS

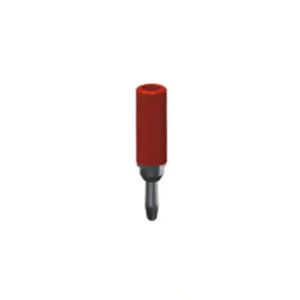

6080
CONN BANANA PLUG STACK SLDR RED

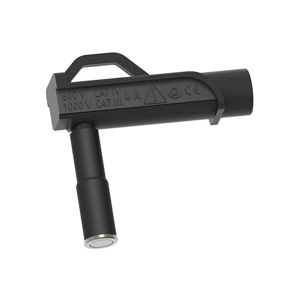

CT3883-0
9MM MAG CONN RA BANANA JACK BLK

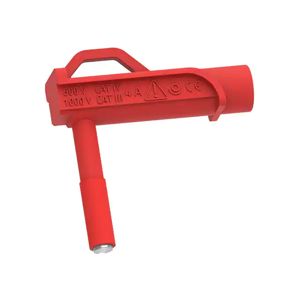

CT3881-2
6.6MM MAG CONN RA BANA JACK RED

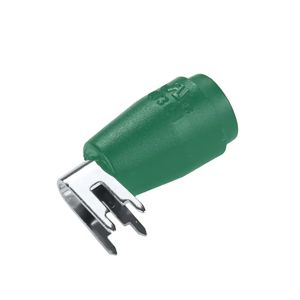

CT3151SP-5
CONN BANANA JACK SOLDER GREEN

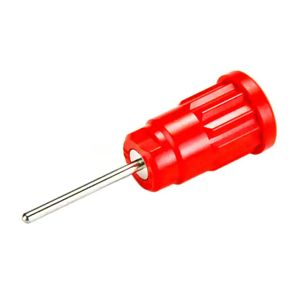

CT2913-2
CONN BANANA JACK PRESS-FIT RED
6079
CONN BANANA PLUG SLDRLESS BLACK

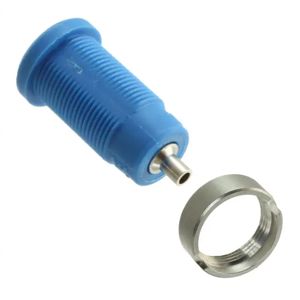

CT2240-6
CONN BANANA JACK SOLDER BLUE

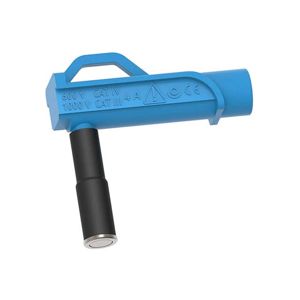

CT3883-6
9MM MAG CONN RA BANANA JACK BLU

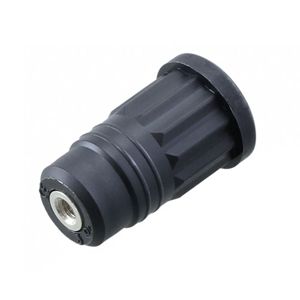

CT2914-0
CONN BANANA JACK PRESS-FIT BLACK

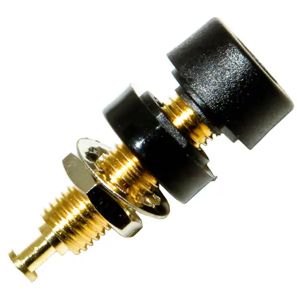

BU-P2854-0
CONN BANANA JACK TURRET BLK 10PK
