Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

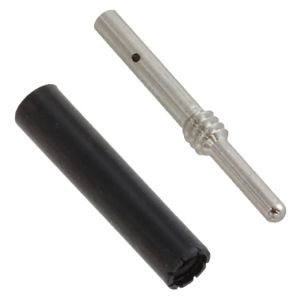

105-0773-001
CONN TIP PLUG BLACK

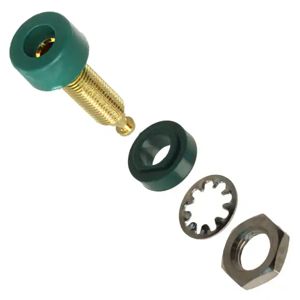

2854-5
CONN BANANA JACK TURRET GREEN

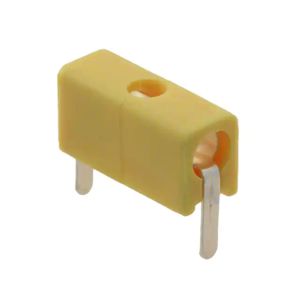

105-0757-001
CONN TIP JACK SOLDER YELLOW

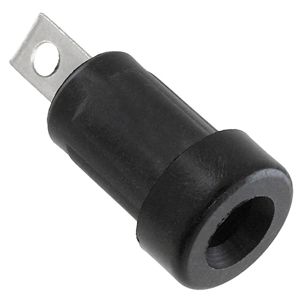

108-2303-801
CONN BANANA JACK SLDR TABS BLACK

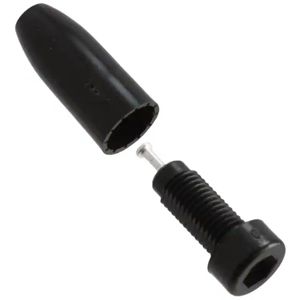

105-0703-001
CONN TIP JACK TURRET BLACK

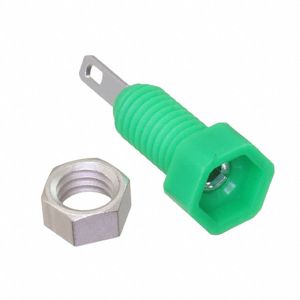

R921932000
BAN2 F DLPI INSUL SP GREEN

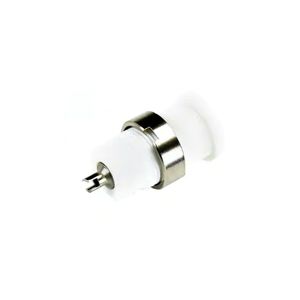

CT2242-9
CONN BANANA JACK SLDR CUP WHITE
105-0303-001
CONN TIP PLUG SOLDERLESS BLACK

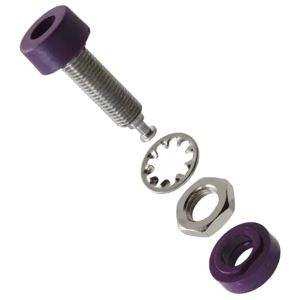

1581-7
CONN BANANA JACK TURRET VIOLET

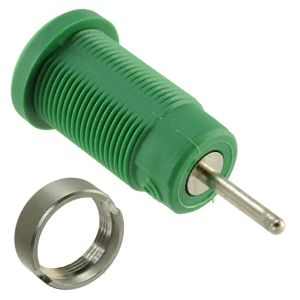

CT2904-5
CONN BANANA JACK SOLDER GREEN

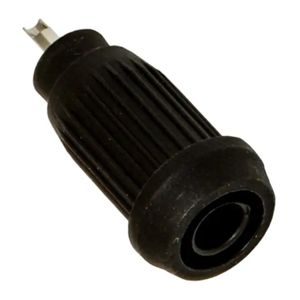

BU-31605-0
CONN BANANA JACK SOLDER BLACK

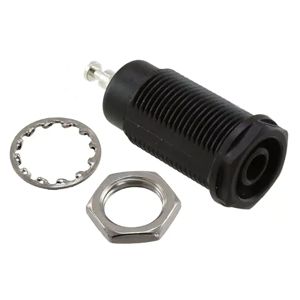

6387-ST-T-0
CONN BANANA JACK TURRET BLACK

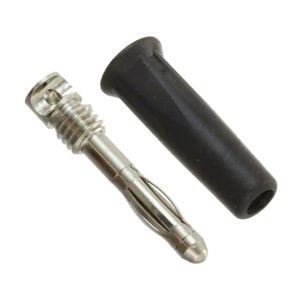

CT2002-0
CONN BANANA PLUG SOLDER BLACK

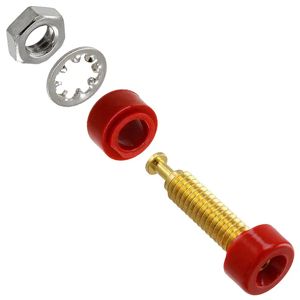

2142-2
CONN BANANA JACK MINI TURRET RED

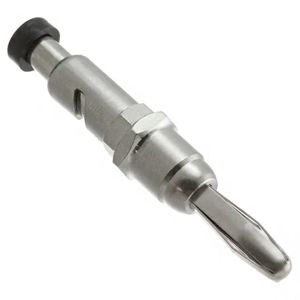

29-101 BLK
CONN BANANA PLUG SLDRLESS BLACK

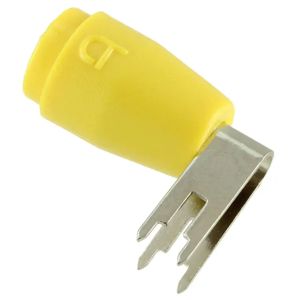

CT3151-4
CONN BANANA JACK SOLDER YELLOW
CT2213-9
CONN BANANA JACK SOLDER WHITE
108-0906-001
CONN BANANA JACK SLDR TABS ORAN

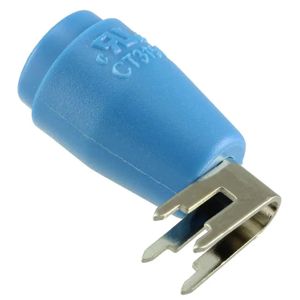

CT3151-6
CONN BANANA JACK SOLDER BLUE

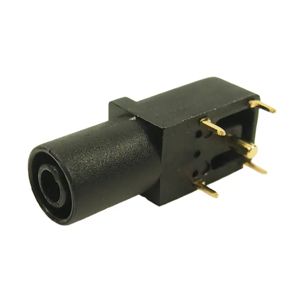

FCR7350B
4MM PANEL SKT S16N-PC BLACK
