Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

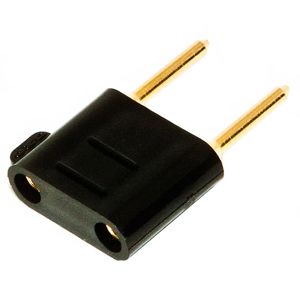

BU-P3452
CONN DBL TIP PLUG STACK SLDR BLK

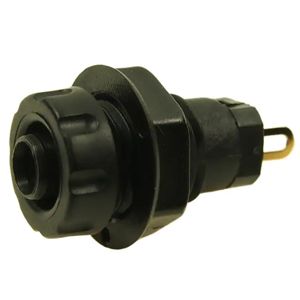

FCR14460
4MM PANEL SKT S16C BLACK WNUT

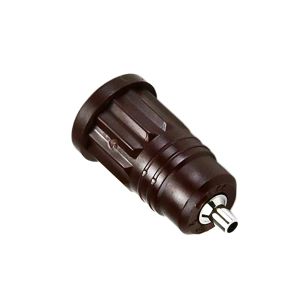

CT2244-0
CONN BANANA JACK SOLDER BLACK

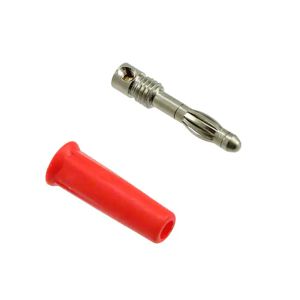

5934-2
CONN BANANA PLUG SOLDERLESS RED
5168-0
CONN BANANA JACK BLACK

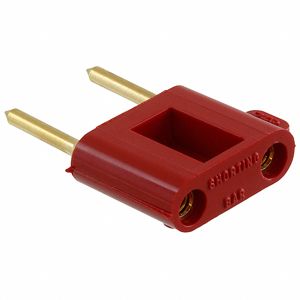

3452-2
CONN DBL TIP PLG STACK SLDRLESS

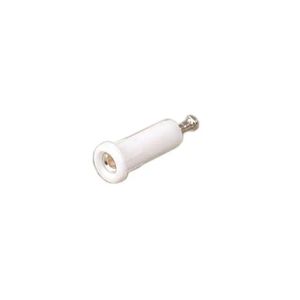

105-1041-001
CONN TIP JACK TURRET WHITE

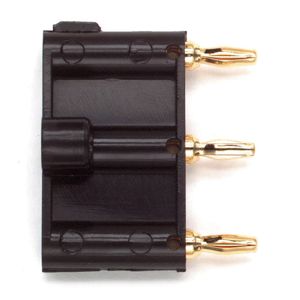

4653-0
CONN TRPL BAN PLG STACK MIN SLDR

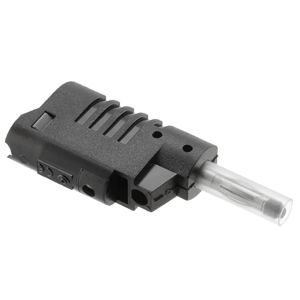

CT2015-0
CONN BANANA PLUG STACK SLDRLESS
105-0310-001
CONN TIP PLUG SOLDERLESS BLUE

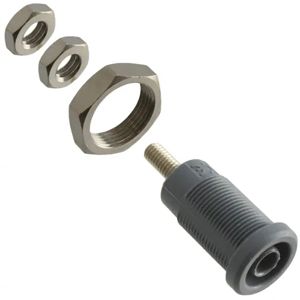

72930-8
CONN BANANA JACK THRD GRAY

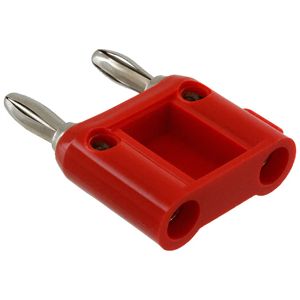

1330-2
CONN DBL BAN PLG STACK SLDRLESS

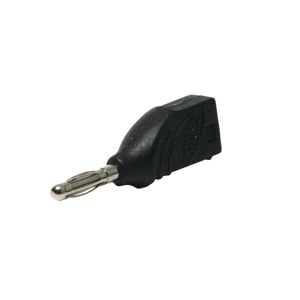

BU-16-0
CONN BANANA PLUG STACK SLDR BLK

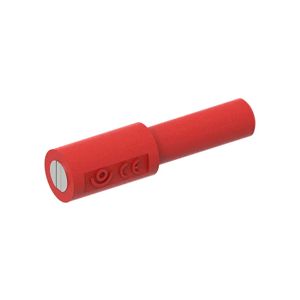

CT3879-2
9MM MAG CONN SHD BANANA JACK RED

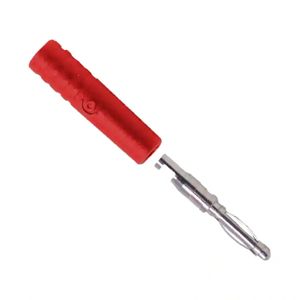

CT3098-2
PLUG DIY 2MM SLDR PRESS INSL RED

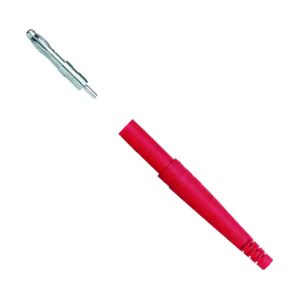

6383-2
CONN BANANA PLUG RED

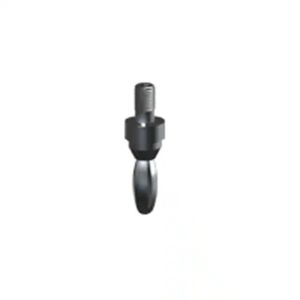

450
CONN BANANA PLUG MINIATURE THRD
2244-2
CONN DBL BANANA PLUG STACK MINI

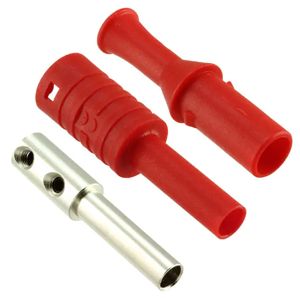

CT3134-2
CONN BANANA JACK SOLDERLESS RED

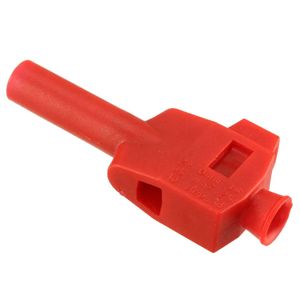

CT3250-2
CONN BANANA PLUG SOLDERLESS RED
