Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

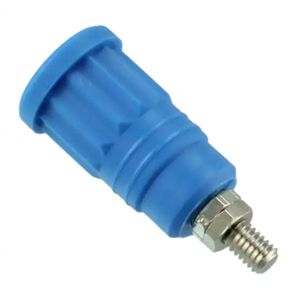

CT2243-6
CONN BANANA JACK THRD BLUE

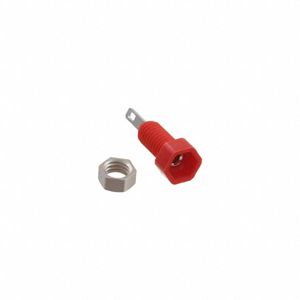

R921931000
BAN2 F DLPI INSUL SP RED

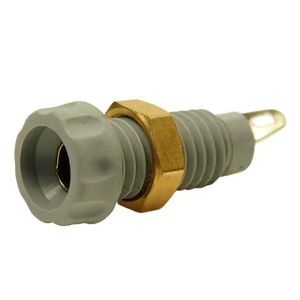

CL1458
4MM PANEL SKT S14 GREY + NUT

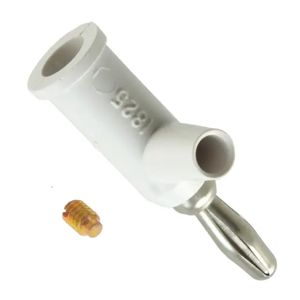

1825-9
CONN BANANA PLUG STACK SLDRLESS
M3498-99
CONN TIP JACK SOLDER RED

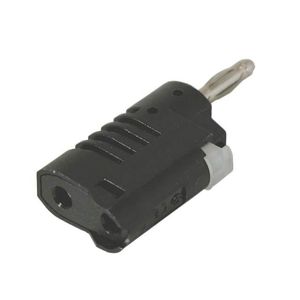

CT2016-0
CONN BANANA PLUG STACK SLDRLESS

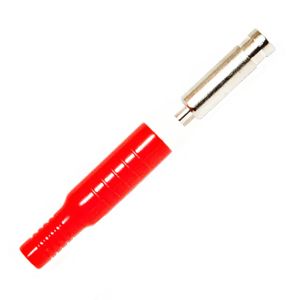

BU-P5168-2
CONN BANANA JACK RED

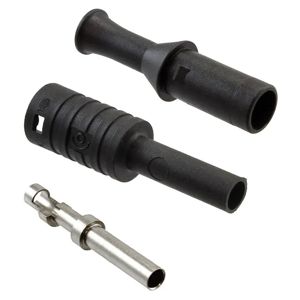

CT3134-S-0
CONN BANANA JACK SOLDER BLACK

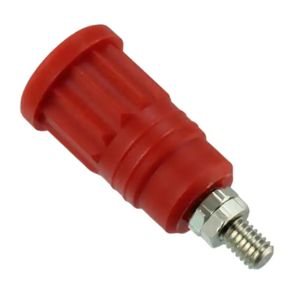

CT2243-2
CONN BANANA JACK THRD RED

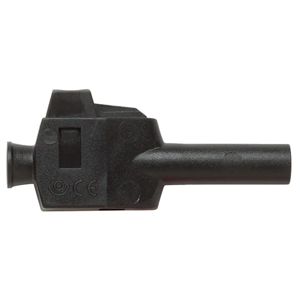

73091-0
CONN BANANA PLUG SLDRLESS BLACK

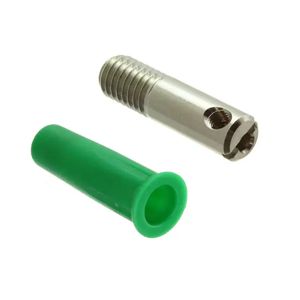

CT2213-5
CONN BANANA JACK SOLDER GREEN
CT2910-8
CONN BANANA JACK QC GRAY

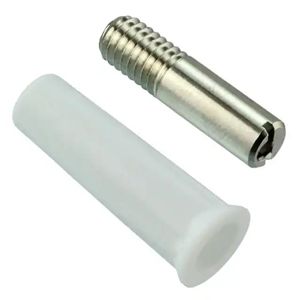

CT2215-9
CONN BANANA JACK SCREW WHITE

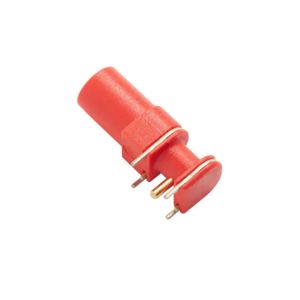

73099-2
R/A 4MM MOUNTG SAFE JACK/PCB RED

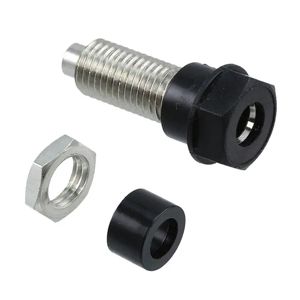

CT2228-0
CONN BANANA JACK SOLDER BLACK

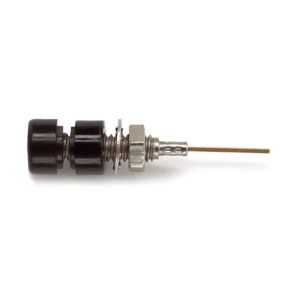

4773-0
CONN TIP JACK MINI WIRE WRAP BLK

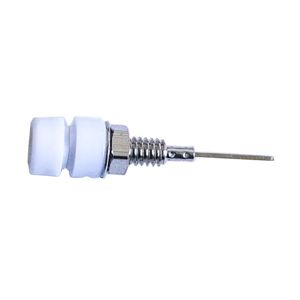

BU-P4773-9
CONN TIP JACK WIRE WRAP WHITE

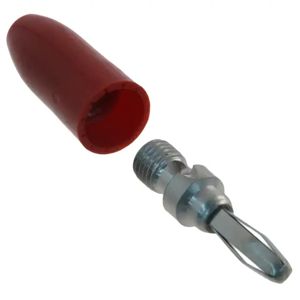

108-0302-001
CONN BANANA PLUG SOLDERLESS RED

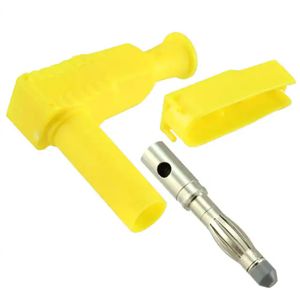

CT3203-S-4
CONN BANANA PLUG SOLDER YELLOW

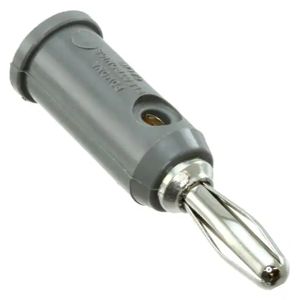

1325-8
CONN BANANA PLUG STACK SLDRLESS
