Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
73092-4
CONN BANANA PLUG STACK SLDRLESS

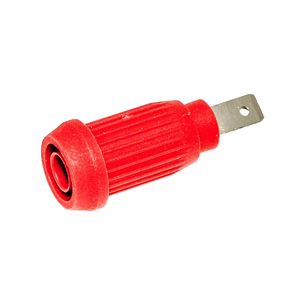

BU-31603-2
CONN BANANA JACK SOLDER TABS RED

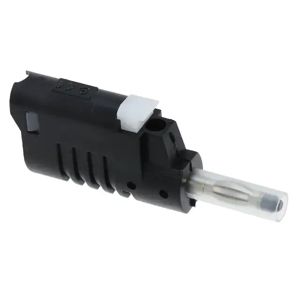

CT2017-0
CONN BANANA PLUG STACK SLDRLESS
CT2002-9
CONN BANANA PLUG SOLDER WHITE
73090-6
CONN BANANA PLUG SOLDERLESS BLUE

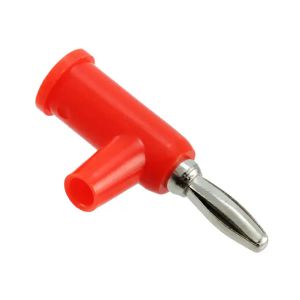

BU-P1825-2
CONN BAN PLG STACK SLDRLESS

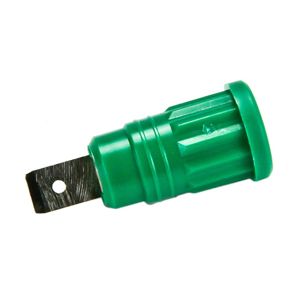

CT2911-5
CONN BANANA JACK QC GREEN

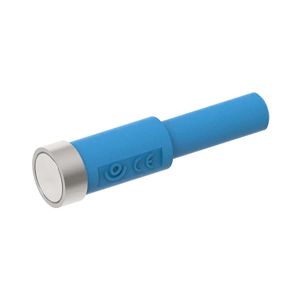

CT3880-6
10MM MAG CONN SH BANANA JACK BLU
3542-4
CONN TIP JACK THRD YELLOW

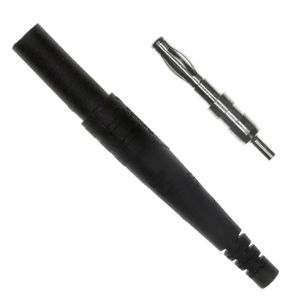

6383-0
CONN BANANA PLUG BLACK

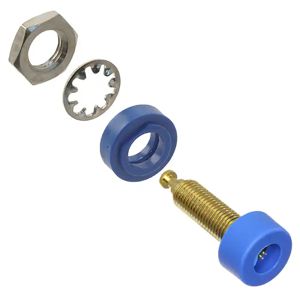

2854-6
CONN BANANA JACK TURRET BLUE

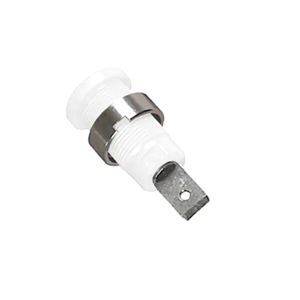

CT2238-9
CONN BANANA JACK QC WHITE

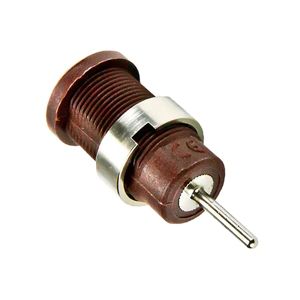

CT2904-1
CONN BANANA JACK SOLDER BROWN

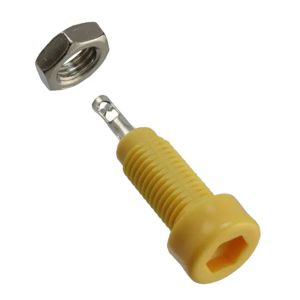

105-0807-001
CONN TIP JACK SLDR EYELET YELLOW
CT2015-5
CONN BANANA PLUG STACK SLDRLESS

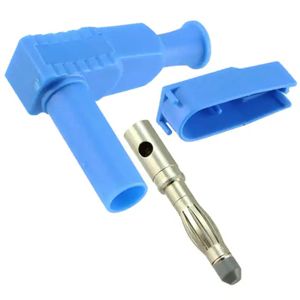

CT3203-S-6
CONN BANANA PLUG SOLDER BLUE

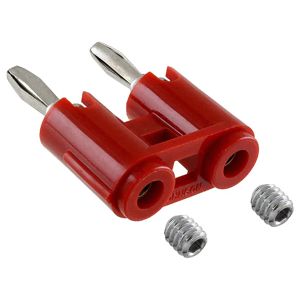

108-0252-001
CONN DBL BAN PLG STACK SLDRLESS

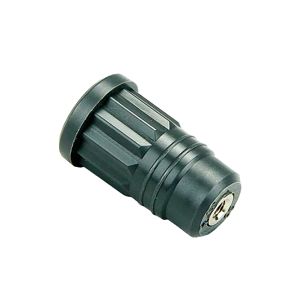

CT2914-8
CONN BANANA JACK PRESS-FIT GRAY

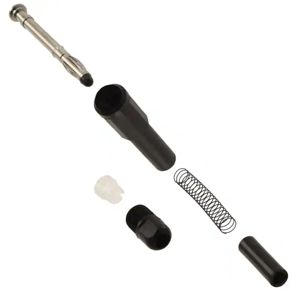

122505A
CONN BANANA PLUG SLDRLESS BLACK
CT4407-2
5KV, 4MM SHTH JACK, 2MM SOLDER C
