Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
CT4006-0
5KV 4MM SHTH JACK,2MM SOLDER CUP

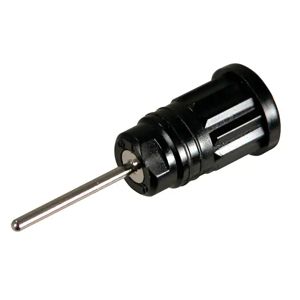

CT2913-0
CONN BANANA JACK PRESS-FIT BLACK

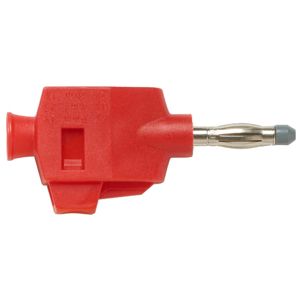

73090-2
CONN BANANA PLUG SOLDERLESS RED

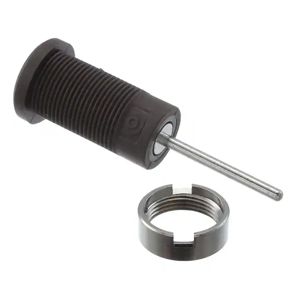

CT2906-1
CONN BANANA JACK SOLDER BROWN

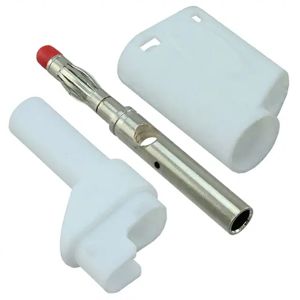

BU-3110410-9
CONN BANANA PLUG STACK SOLDER

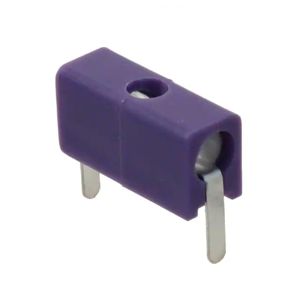

105-0762-001
CONN TIP JACK SOLDER VIOLET

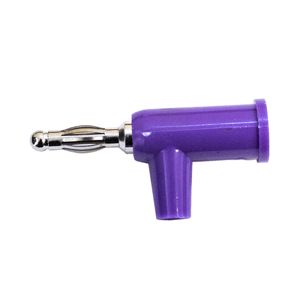

BU-P1825-7
CONN BANANA PLUG STACK SLDRLESS

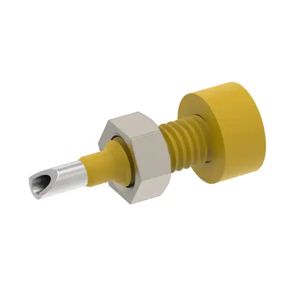

R921924000
BANANA / 2MM SERIE FEMALE DLPI I

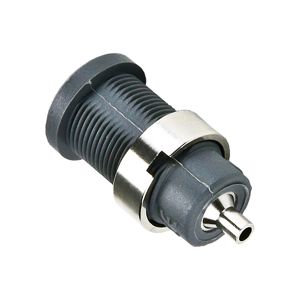

CT2240-8
CONN BANANA JACK SOLDER GRAY

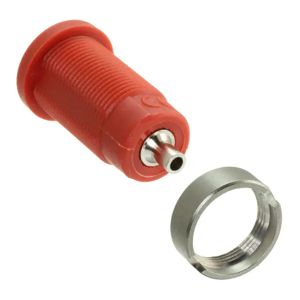

CT2240-2
CONN BANANA JACK SOLDER RED

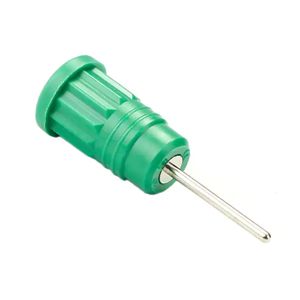

CT2913-5
CONN BANANA JACK PRESS-FIT GREEN

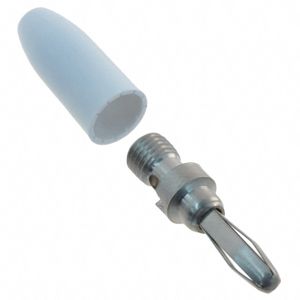

108-0301-001
CONN BANANA PLUG SLDRLESS WHITE

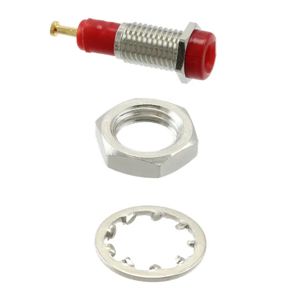

6013
CONN TIP JACK TURRET RED

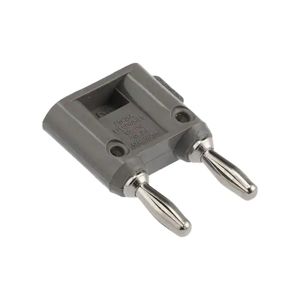

MDP-8
CONN DBL BAN PLUG STACK SLDRLESS

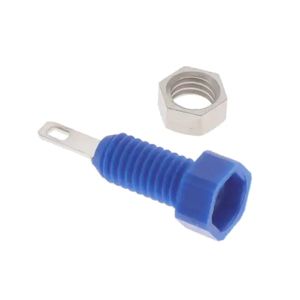

R921933000
BANANA / 2MM SERIE FEMALE DLPI I

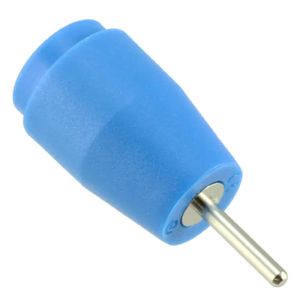

CT3149-6
CONN BANANA JACK SOLDER BLUE

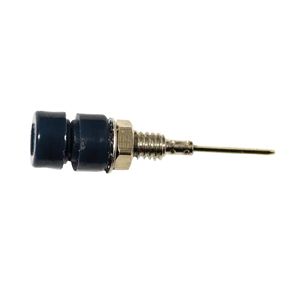

BU-P4773-0
CONN TIP JACK WIRE WRAP BLACK

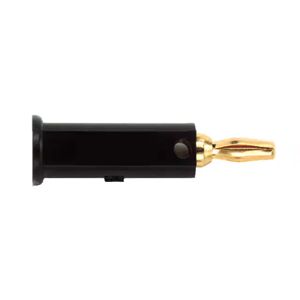

2944-0
CONN BAN PLG STACK MINI SLDRLESS

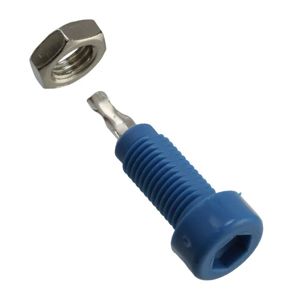

105-0810-001
CONN TIP JACK SLDR EYELET BLUE

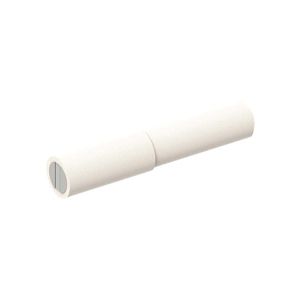

CT3878-9
7MM MAG CONN SHD BANANA JACK WHT
