Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

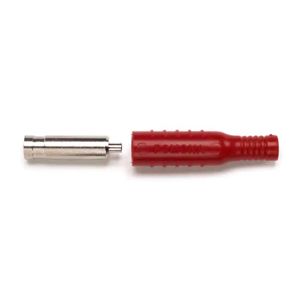

5167-2
CONN BANANA JACK RED

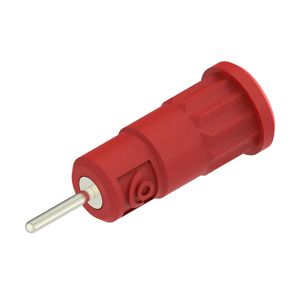

CT3887-2
CAT IV 4MM SHTH J, PRESS FIT, 2M

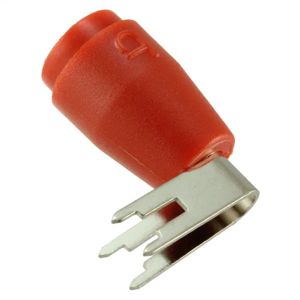

CT3151-2
CONN BANANA JACK SOLDER RED

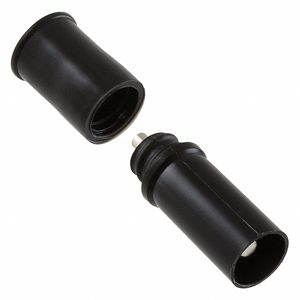

4986-0
CONN BANANA PLUG BLACK

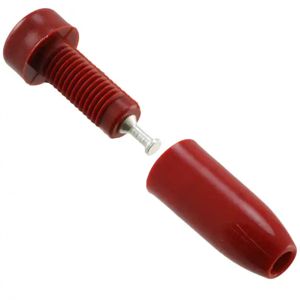

105-0702-001
CONN TIP JACK TURRET RED

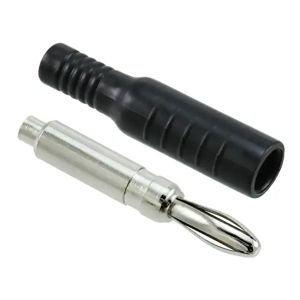

BU-P5170-0
CONN BANANA PLUG BLACK

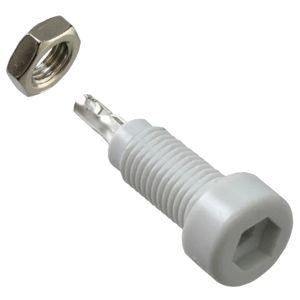

105-0801-001
CONN TIP JACK SLDR EYELET WHITE

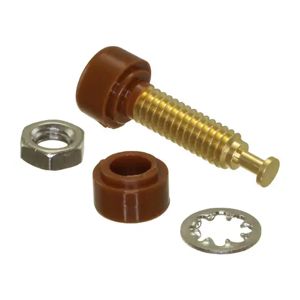

EM3542-1#
CONN TIP JACK THRD BROWN
6545
CONN BAN PLG STACK SLDRLESS 10PC

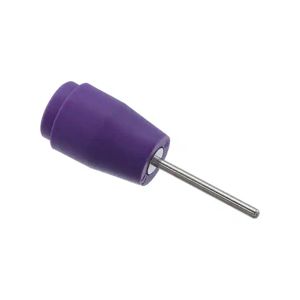

CT3150-7
CONN BANANA JACK SOLDER PURPLE

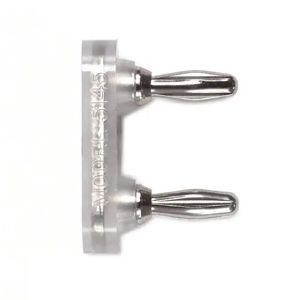

5145
CONN DBL BANANA PLUG SLDR CLEAR

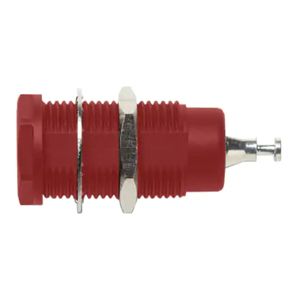

6387-ST-T-2
CONN BANANA JACK TURRET RED

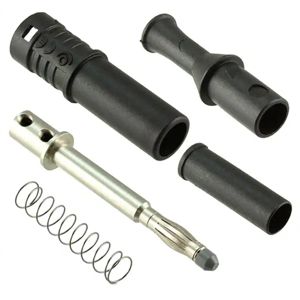

CT3201-0
CONN BANANA PLUG SLDRLESS BLACK

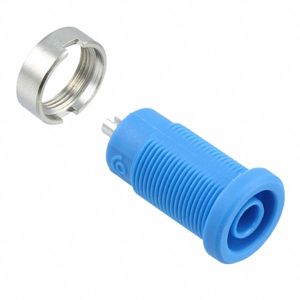

CT2242-6
CONN BANANA JACK SOLDER CUP BLUE

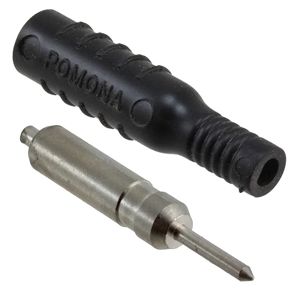

5173-0
CONN TIP PLUG BLACK

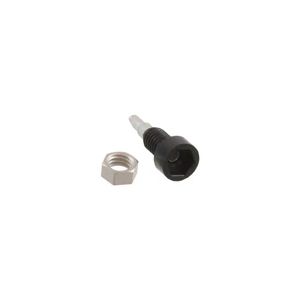

R921920000
BAN2 F DLPI INSUL SP BLACK

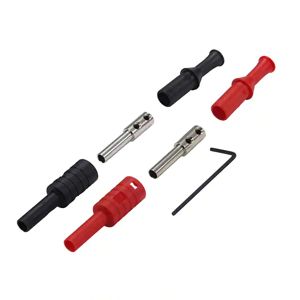

CT3207W
CONN BANANA JACK SOLDERLESS

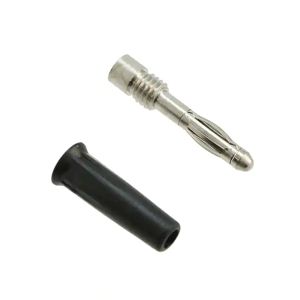

5934-0
CONN BANANA PLUG SLDRLESS BLACK
108-0306-001
CONN BANANA PLUG SLDRLESS ORANGE
4892-2
CONN DBL BAN PLG STACK SLDRLESS
