Banana and Tip Connectors - Jacks, Plugs

Banana and Tip Connectors - Jacks, Plugs

Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.

Types of Banana and Tip Connectors:

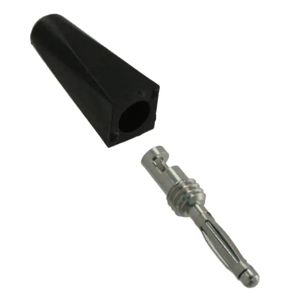

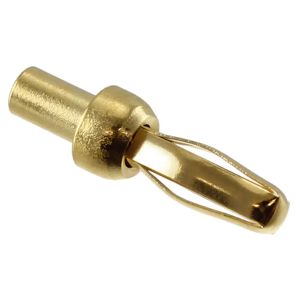

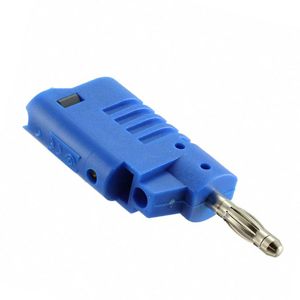

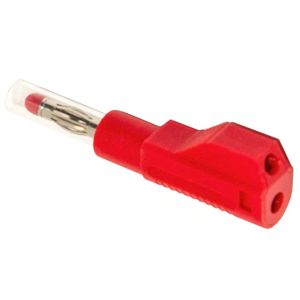

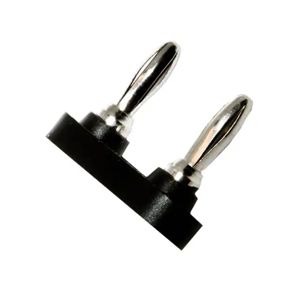

1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.

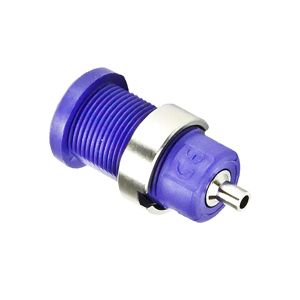

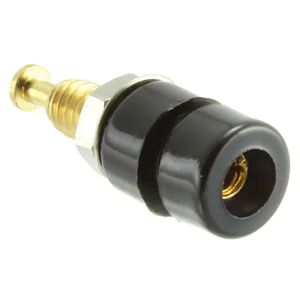

2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.

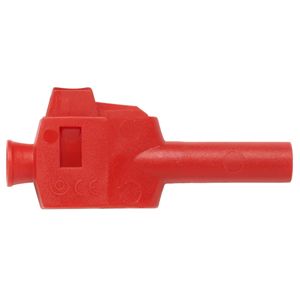

4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.

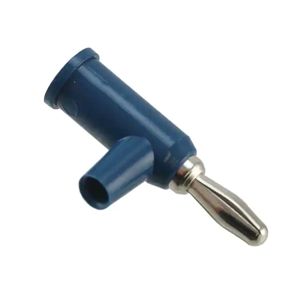

5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.

Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.

Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.

Found 1536 items
