Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1023S-50
IC DEL LN 256TAP 127.5NS 16SOIC
DS1135LU-15+TR
3V 3-IN-1 HIGH-SPEEDDELAY LINE
DS1010S-150
DELAY LINE 10TAP 150NS 16-SOIC
DS1100LZ-25+
IC DELAY LINE 5TAP 25NS 8SOIC
LTC6994MPS6-2#TRMPBF
IC DELAY BLOCK 8TAP PROG TSOT23
DS1000K-100
DS1000 5-TAP SILICON DELAY LINE
DS1000C-703/T&R
IC DELAY LINE 5TAP 8-SOIC
MC100EP196FAR2G
IC DELAY LN 1024TAP PROG 32LQFP
DS1100LU-60
DELAY LINE 3V 5TAP 60NS 8-USOP
DS1005M-250
IC DELAY LINE 5TAP 250NS 8DIP
DS1000Z-100N
DS1000 5-TAP SILICON DELAY LINE

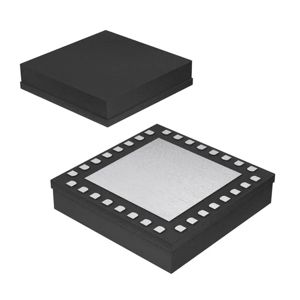

HMC856LC5TR
IC DELAY LINE 100PS 32SMT
DS1005H-200/T&R
DS1005 5-TAP SILICON DELAY LINE
DS1005M-60+
IC DELAY LINE 5TAP 60NS 8DIP
DS1100LZ-250
IC DELAY LINE 5TAP 250NS 8SOIC
DS1005S-75+
IC DELAY LINE 5TAP 75NS 16SOIC

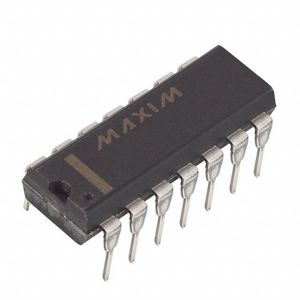

DS1010-50
IC DELAY LINE 10TAP 50NS 14DIP
DS1023S-100+
IC DELAY LN 256TAP 255NS 16SOIC

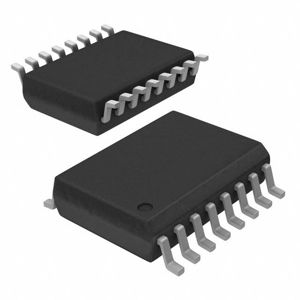

DS1110S-60+
