Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1007-2
DS1007 7-IN-1 SILICON DELAY LINE
DS1135Z-12+
IC DELAY LINE 12NS 8SOIC
DS1135Z-15+T&R
IC DELAY LINE 15NS 8SOIC

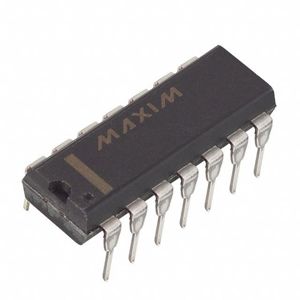

DS1010-80
IC DELAY LINE 10TAP 80NS 14DIP

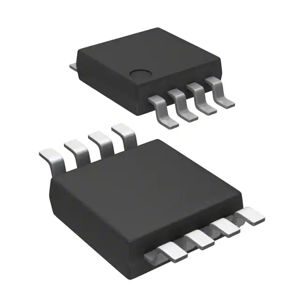

DS1100LU-40+T
IC DELAY LINE 5TAP 40NS 8UMAX
DS1110S-100
IC DELAY LINE 10TAP 100NS 16SOIC

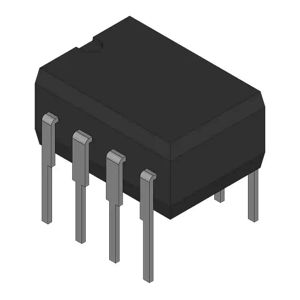

DS1000H-40
DS1000 5-TAP SILICON DELAY LINE
DS1100LU-20/T&R
IC DELAY LINE 5TAP 20NS 8UMAX

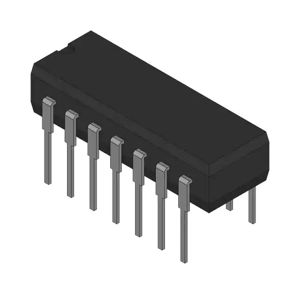

DS1005-200
DS1005 5-TAP SILICON DELAY LINE
DS1100Z-75
IC DELAY LINE 5TAP 75NS 8SOIC
DS1110LE-200+
IC DELAY LN 10TAP 200NS 14TSSOP
DS1000K-200
DS1000 5-TAP SILICON DELAY LINE
DS1000Z-60
DS1000 5-TAP SILICON DELAY LINE
DS1033Z-30
IC DELAY LINE 30NS 8-SOIC

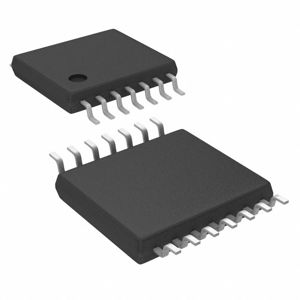

DS1110E-80+
IC DELAY LINE 10TAP 80NS 14TSSOP
DS1100M-40+
IC DELAY LINE 5TAP 40NS 8DIP
DS1100LZ-100/T&R
IC DELAY LINE 5TAP 100NS 8SOIC
DS1135Z-10+T&R
IC DELAY LINE 10NS 8SOIC
DS1000Z-150/T&R/
DS1000 5-TAP SILICON DELAY LINE
DS1100LZ-250+T
IC DELAY LINE 5TAP 250NS 8SOIC
