D-Shaped Connectors - Centronics
D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

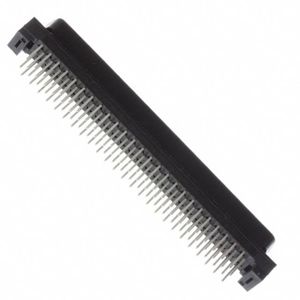

FX2CA2-100S-1.27DSA(71)
CONN RECEPT VERT 100POS 1.27MM

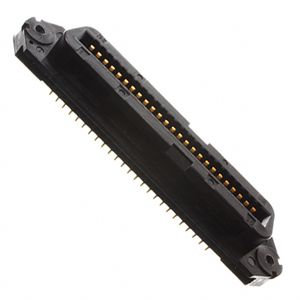

554753-1
CONN RCPT 50POS VERT PRESS-FIT

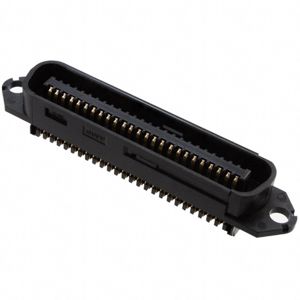

552686-1
CONN PLUG 50POS STR IDC

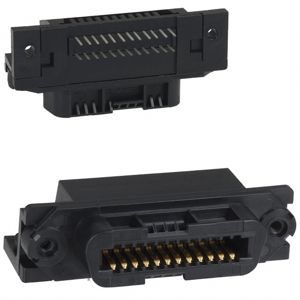

5552791-1
CONN RCPT 24POS R/A SOLDER

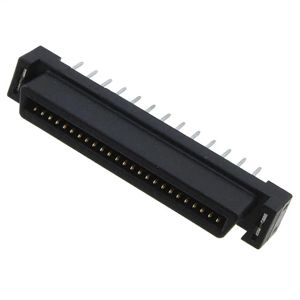

1734101-5
CONN BTB RCPT 50POS VERT SOLDER

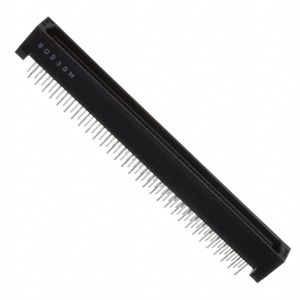

FX2CA2-120P-1.27DSA(71)
CONN HEADER VERT 120POS 1.27MM

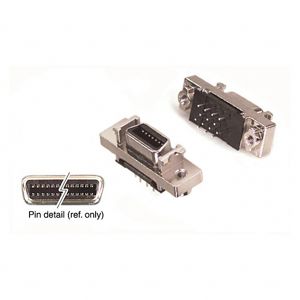

DX20M-14S(50)
CONN MINI HD RCPT 14P PCB SOLDER

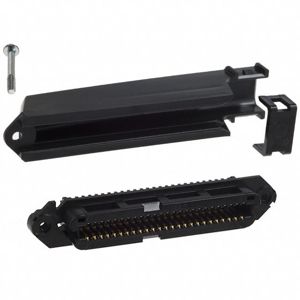

5552403-1
CONN RCPT 50POS R/A IDC

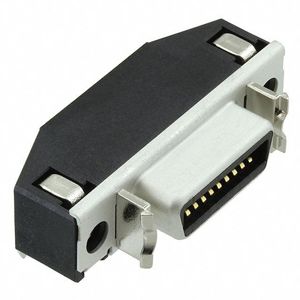

DF02R020NA3
CONN RCPT 20POS R/A SOLDER

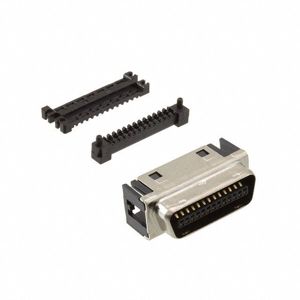

DX30AM-26P
CONN MINI HD PLUG 26POS STR IDC

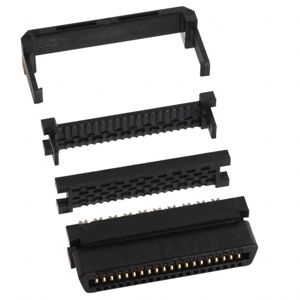

FX2BA-40SA-1.27R
CONN SOCKET 40POS 1.27MM (4PCS)

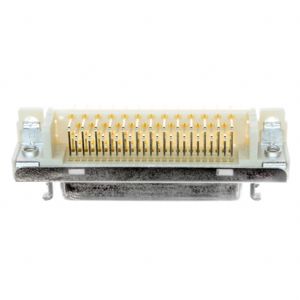

10250-55H3PC
CONN RCPT 50POS R/A SOLDER

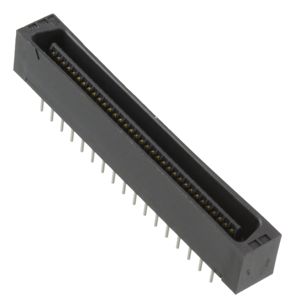

FX2C-68P-1.27DSAL(71)
CONN HEADER VERT 68POS 1.27MM

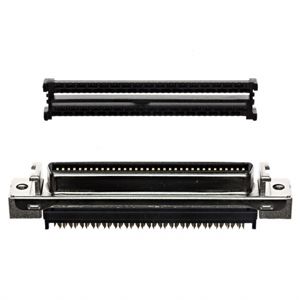

10268-0210EC
CONN RCPT 68POS STR IDC

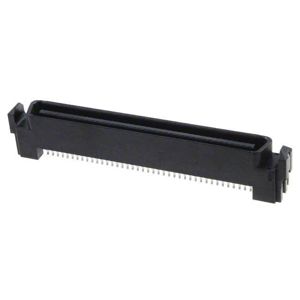

5084487-1
CONN SCA-2 PLUG 80P EDGE MT SLDR

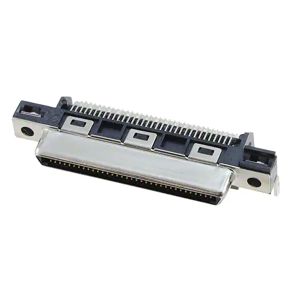

796055-2
CONN RCPT 68POS R/A SOLDER

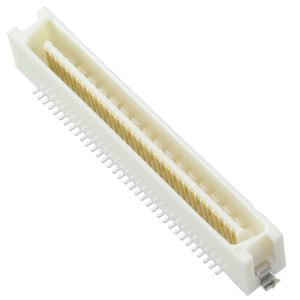

FX2-68P-1.27SVL(71)
CONN HDR 68POS 1.27MM

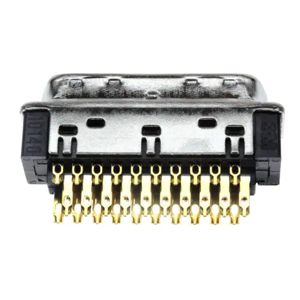

10140-3000PE
CONN PLUG 40POS STR SLDR CUP

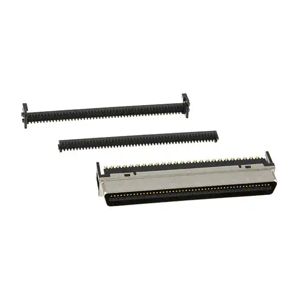

DX30-100P(50)
IDC CONN 100POS PLUG

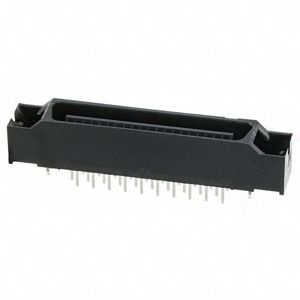

FX2B-40PA-1.27DSAL(71)
CONN HEADER VERT 40POS 1.27MM
