D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

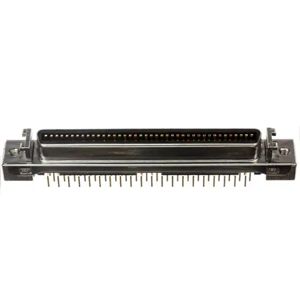

10280-6212PC
CONN RCPT 80POS PCB SOLDER

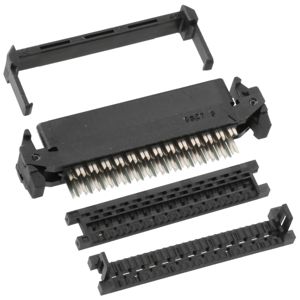

FX2BM-52SA-1.27R
CONN RECEPT 52POS 1.27MM

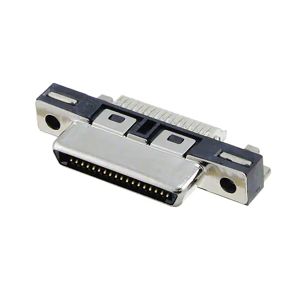

787973-1
CONN RCPT 36POS R/A SOLDER

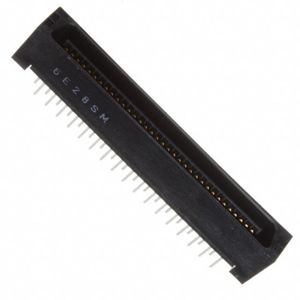

FX2CA2-68P-1.27DSA(71)
CONN HEADER VERT 68POS 1.27MM

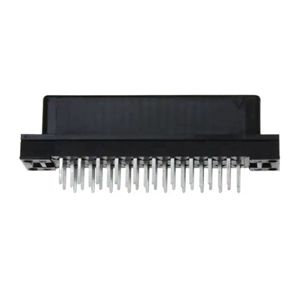

FX2C-40S-1.27DSA(71)
CONN RECEPT VERT 40POS 1.27MM

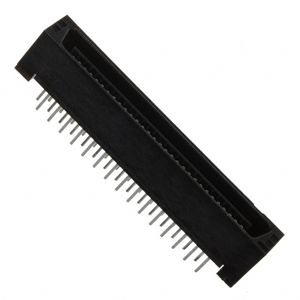

FX2C1-60P-1.27DSA(71)
CONN HEADER VERT 60POS 1.27MM

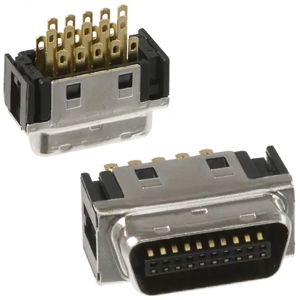

DX40M-20P
CONN MIN HD PLG 20P STR SLD EYEL

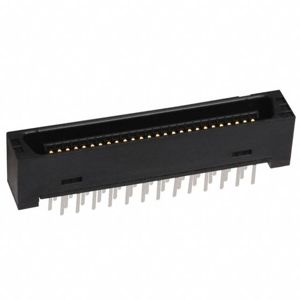

FX2CA-52P-1.27DSA(71)
CONN HEADER VERT 52POS 1.27MM

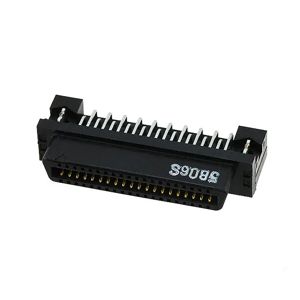

FX2-40S-1.27DSL(71)
CONN BTB RCPT 40POS R/A SOLDER

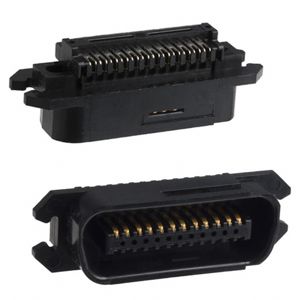

552317-1
CONN PLUG 24POS STR IDC

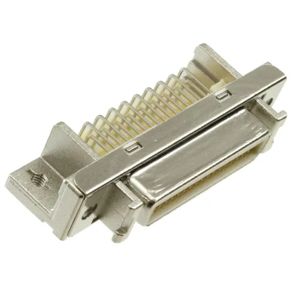

N10236-5212PC
CONN RCPT 36POS R/A SOLDER

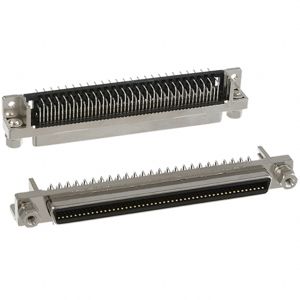

DX10BM-100S(50)
CONN MINI HD RCPT 100P R/A SLDR

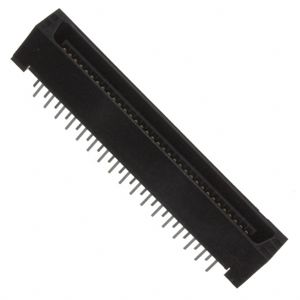

FX2C1-68P-1.27DSA(71)
CONN HEADER VERT 68POS 1.27MM

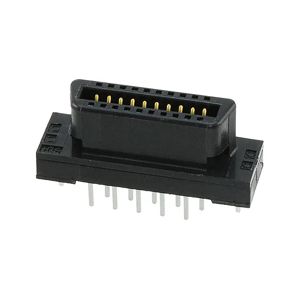

FX2CA-20S-1.27DSAL(71)
CONN RECEPT 20POS 1.27MM

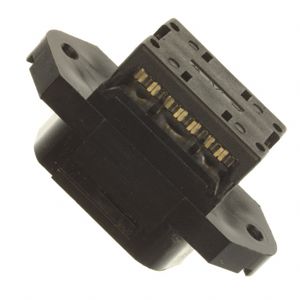

553596-1
CONN PLUG 14POS STR IDC

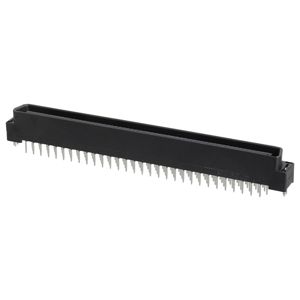

1-5175473-1
CONN BTB HD PLUG 120P VERT SLDR

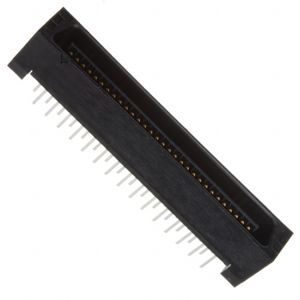

FX2CA2-60P-1.27DSA(71)
CONN HEADER VERT 60POS 1.27MM

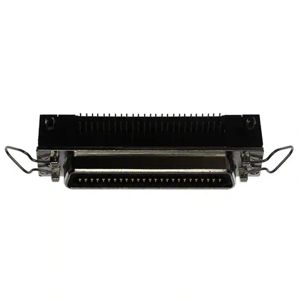

5555057-1
CONN RCPT 50POS R/A SOLDER

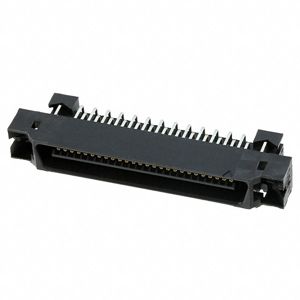

FX2B-52P-1.27DSL(71)
CONN HDR 52POS 1.27MM

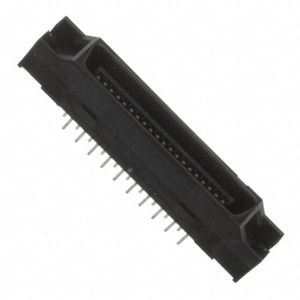

FX2BA-40PA-1.27DSA(71)
CONN HEADER VERT 40POS 1.27MM
