Diodes - Rectifiers - Arrays
Diodes - Rectifiers - Arrays: Classification Overview
1. Definition of the Classification
"Diodes - Rectifiers - Arrays" is a specialized subcategory under Discrete Semiconductor Products, focusing on components designed for current rectification and signal conditioning in electronic circuits. Diodes allow current to flow in one direction, rectifiers convert AC to DC, and arrays integrate multiple diodes into a single package for compact circuit design. These components are fundamental in power supply units, voltage regulation, and circuit protection applications.
2. Types of Products in This Classification
This category includes:
- Standard Rectifier Diodes: General-purpose diodes for low-frequency rectification.
- Fast/Ultrafast Recovery Diodes: Optimized for high-speed switching in power supplies and inverters.
- Schottky Diodes: Low forward voltage drop, ideal for high-efficiency applications.
- Bridge Rectifiers: Pre-configured diode arrays for full-wave rectification.
- Diode Arrays (Multiples): Integrated packages (e.g., dual/triple diodes) for space-saving PCB designs.
3. Purchasing Recommendations
- Voltage/Current Ratings: Match specifications (e.g., VRRM, IF) to your circuit requirements.
- Switching Speed: Select fast-recovery diodes for high-frequency applications.
- Thermal Performance: Verify thermal resistance (R JA) for power dissipation needs.
- Packaging: Choose arrays (SMD/through-hole) based on board space and assembly method.
- Reliability: Prioritize AEC-Q101 certified diodes for automotive/industrial use.
This classification ensures efficient power management and circuit protection key for consumer electronics, automotive systems, and industrial equipment. Select components with precision to balance cost, performance, and longevity.
Filter and sort
Categories
VS-10CWH02FN-M3
DIODE ARRAY GP 200V 10A TO252AA

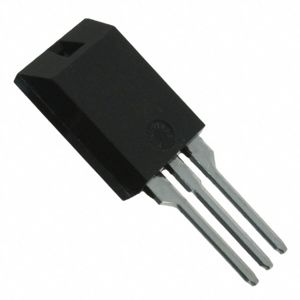

DSEC16-06AC
DIODE ARRAY 600V 10A ISOPLUS220

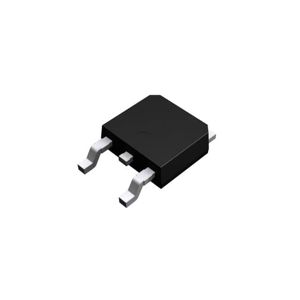

RBR20BM40ATL
DIODE (RECTIFIER FRD) 40V-VR 20A

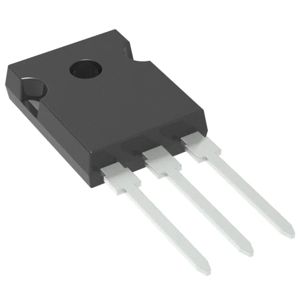

SB4060PT_T0_00001
SCHOTTKY BARRIER RECTIFIER

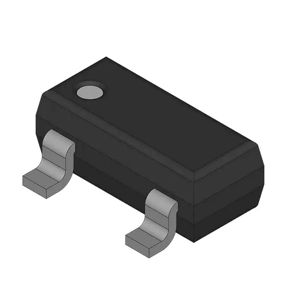

BAV23QAZ
BAV23QA - DUAL COMMON CATHODE HI
BAT54CTB-AU_R1_000A1
SCHOTTKY BARRIER RECTIFIER

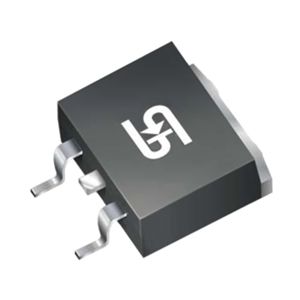

TSD30H120CW
DIODE, SCHOTTKY, TRENCH, 30A, 12
F1857CCD400
DIODE MODULE 400V 55A

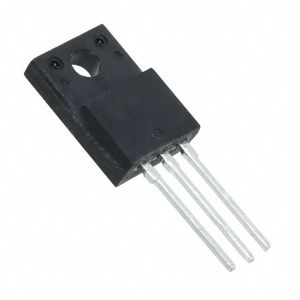

RB088T-60NZC9
RB088T-60NZ IS SUPER LOW IR
MBRF1080CTR
DIODE ARRAY SCHOTTKY 80V ITO220

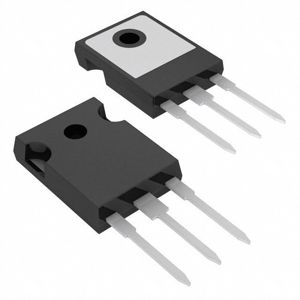

VS-40CPQ060-N3
DIODE ARRAY SCHOTTKY 60V TO247AC
BAS40-05HMFHT116
DIODE ARRAY SCHOT 40V 120MA SSD3

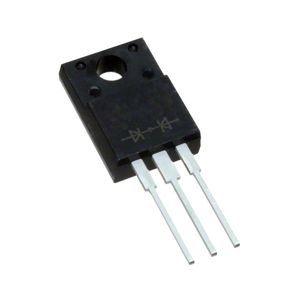

MBRF3045CTH
DIODE ARRAY SCHOTT 45V ITO220AB
VB20120C-E3/4W
DIODE ARRAY SCHOTTKY 120V TO263
BAS31
DIODE SOT-23 120V 0.2A 50NS
BAW56LT3G
DIODE ARRAY GP 70V 200MA SOT23-3
MBRB2045CTHE3_B/P
DIODE ARRAY SCHOTTKY 45V TO263AB

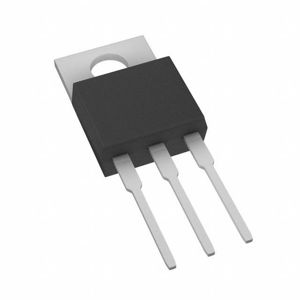

FEPF16GTHE3_A/P
DIODE ARRAY GP 400V 8A ITO220AB

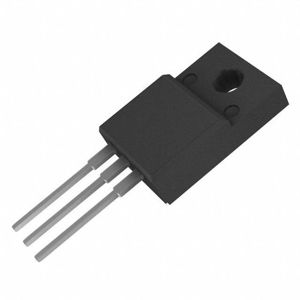

MBRF40100CTR
DIODE ARRAY SCHOTTKY 100V ITO220

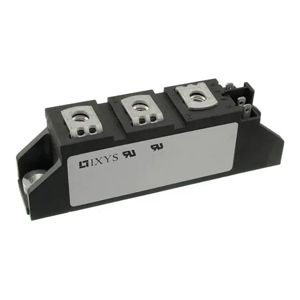

MDMA110P1600TG
DIODE MODULE 1.6KV 110A TO240AA
