Diodes - Rectifiers - Arrays
Diodes - Rectifiers - Arrays: Classification Overview
1. Definition of the Classification
"Diodes - Rectifiers - Arrays" is a specialized subcategory under Discrete Semiconductor Products, focusing on components designed for current rectification and signal conditioning in electronic circuits. Diodes allow current to flow in one direction, rectifiers convert AC to DC, and arrays integrate multiple diodes into a single package for compact circuit design. These components are fundamental in power supply units, voltage regulation, and circuit protection applications.
2. Types of Products in This Classification
This category includes:
- Standard Rectifier Diodes: General-purpose diodes for low-frequency rectification.
- Fast/Ultrafast Recovery Diodes: Optimized for high-speed switching in power supplies and inverters.
- Schottky Diodes: Low forward voltage drop, ideal for high-efficiency applications.
- Bridge Rectifiers: Pre-configured diode arrays for full-wave rectification.
- Diode Arrays (Multiples): Integrated packages (e.g., dual/triple diodes) for space-saving PCB designs.
3. Purchasing Recommendations
- Voltage/Current Ratings: Match specifications (e.g., VRRM, IF) to your circuit requirements.
- Switching Speed: Select fast-recovery diodes for high-frequency applications.
- Thermal Performance: Verify thermal resistance (R JA) for power dissipation needs.
- Packaging: Choose arrays (SMD/through-hole) based on board space and assembly method.
- Reliability: Prioritize AEC-Q101 certified diodes for automotive/industrial use.
This classification ensures efficient power management and circuit protection key for consumer electronics, automotive systems, and industrial equipment. Select components with precision to balance cost, performance, and longevity.
Filter and sort
Categories
TSI20H120CW
DIODE ARRAY SCHOTTKY 120V I2PAK
UC1611J883B
UC1611 QUAD SCHOTTKY DIODE ARRAY
V40PWM15C-M3/I
DIODE ARRAY SCHOTT 150V SLIMDPAK
15CTQ035
15A, 35V, TO-220AB, SCHOTTKY REC
SDURB1020CT
DIODE ARRAY GEN PURP 200V D2PAK
STTH1602CGY-TR
DIODES AND RECTIFIERS
VS-VSKCS403/100
DIODE SCHOTTKY 100V 200A ADDAPAK
MUR3060WTG
DIODE ARRAY GP 600V 15A TO247
SK2060CD2R
SCHOTTKY D2PAK 60V 20A
BAW56Q-13-F
SWITCHING DIODE SOT23 T&R 10K

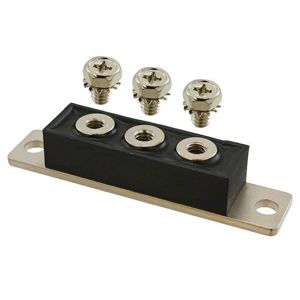

MURTA30040R
DIODE GEN PURP 400V 150A 3 TOWER
MURB1620CTT4G
DIODE ARRAY GP 200V 8A D2PAK
BYVB32-150-E3/81
DIODE ARRAY GP 150V 18A TO263AB

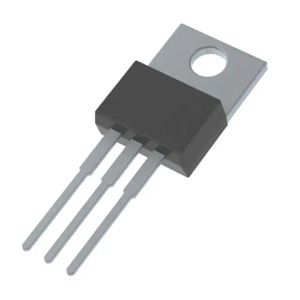

RB205T-90NZC9
90V, 15A, ITO-220AB, SCHOTTKY BA
RBQ15BGE65ATL
65V, 15A, TO-252, CATHODE COMMON
BAV170W_R1_00001
SURFACE MOUNT, LOW LEAKAGE SWITC

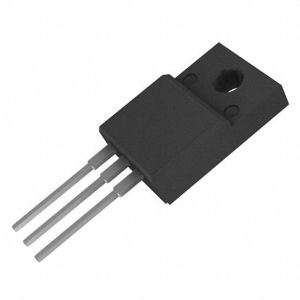

MBRU40100FCT-B1-0000HF
SCHOTTKY DIODE 100V 40A ITO-220A

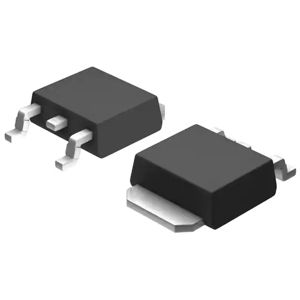

RBR20BM30AFHTL
DIODE (RECTIFIER FRD) 30V-VR 20A
MUR1620CTR
DIODE ARRAY GP 200V 8A TO220AB

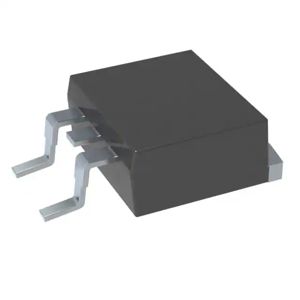

MBR10H150DC_R2_00001
ULTRA LOW IR SCHOTTKY BARRIER RE
