Diodes - Zener - Single
Diodes - Zener - Single: Precision Voltage Regulation for Your Circuit Needs
Definition:
Diodes - Zener - Single are specialized semiconductor devices designed to maintain a stable reference voltage in electronic circuits. Unlike standard diodes, Zener diodes operate in the reverse breakdown region, providing precise voltage regulation and protection against voltage spikes. They are essential components in power supplies, voltage regulators, and surge protection applications.
Types of Products in This Category:
This classification includes a variety of Zener diodes tailored to different voltage and power requirements:
- Voltage Ratings: Ranging from a few volts to several hundred volts, catering to low-voltage and high-voltage applications.
- Power Dissipation: Options include low-power (e.g., 500mW) for signal circuits and high-power (e.g., 5W) for robust power management.
- Packaging: Available in multiple form factors such as DO-41, SOD-123, and SOT-23 for through-hole or surface-mount designs.
- Tolerance Levels: Precision Zeners with tight tolerances (e.g., 1%) for critical applications, and standard tolerances (e.g., 5%) for general use.
Purchasing Recommendations:
When selecting a Zener diode, consider the following to ensure optimal performance:
1. Voltage Requirement: Choose a Zener voltage (Vz) that matches your circuit s regulation needs.
2. Power Rating: Ensure the diode s power dissipation (Pz) exceeds the maximum expected load to avoid overheating.
3. Application Environment: For high-reliability scenarios (e.g., automotive or industrial), opt for diodes with robust thermal and electrical characteristics.
4. Packaging Compatibility: Select a package type that aligns with your PCB design (e.g., SMD for compact layouts).
Zener diodes are indispensable for maintaining voltage stability invest in the right specifications to enhance circuit reliability and longevity.
Filter and sort
Categories
SML4757AHE3_A/H
DIODE ZENER 51V 1W DO214AC

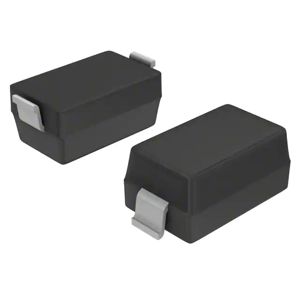

MMSZ5231C-HE3-18
DIODE ZENER 5.1V 500MW SOD123

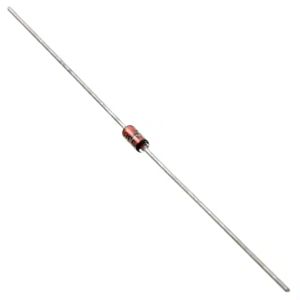

JAN1N4618D-1/TR
VOLTAGE REGULATOR

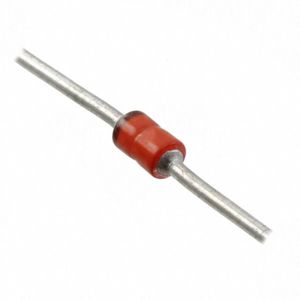

JANTX1N4476
DIODE ZENER 30V 1.5W DO204AL

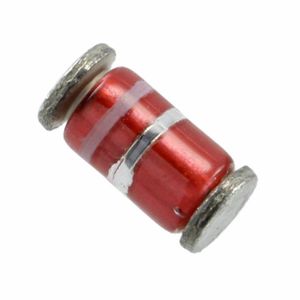

1N4746AUR
DIODE ZENER 18V 1W DO213AB

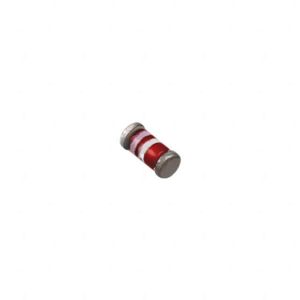

JAN1N978CUR-1
DIODE ZENER 51V 500MW DO213AA

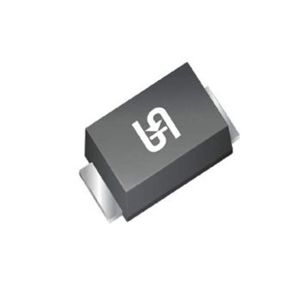

BZD27C82P RUG
DIODE ZENER 82V 1W SUB SMA

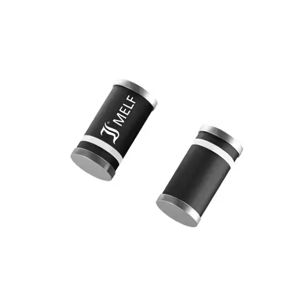

CDLL5236B/TR
VOLTAGE REGULATOR
ZMY12
DIODE ZENER 12V 1.3W MELF
JAN1N974BUR-1
DIODE ZENER 36V 500MW DO213AA
1PGSMA4763 R3G
DIODE ZENER 91V 1.25W DO214AC

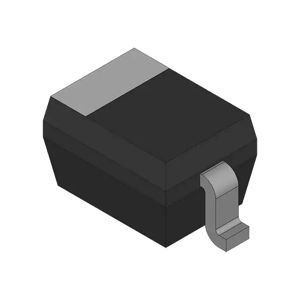

PZS5139BCH-AU_R1_000A1
SILICON ZENER DIODE
1N4622UR
DIODE ZENER 3.9V 500MW DO213AA

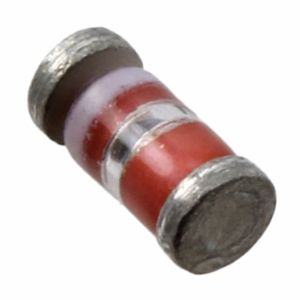

CDLL6348D/TR
VOLTAGE REGULATOR
JANTX1N4618D-1/TR
VOLTAGE REGULATOR

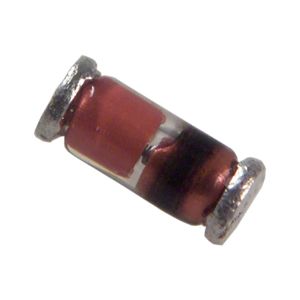

TZM5250B-GS08
DIODE ZENER 20V 500MW SOD80

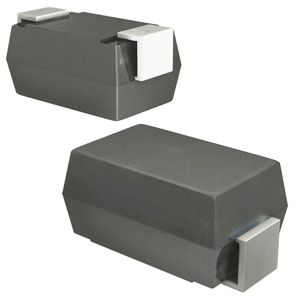

SMAJ4763A-TP
DIODE ZENER 91V 1W DO214AC

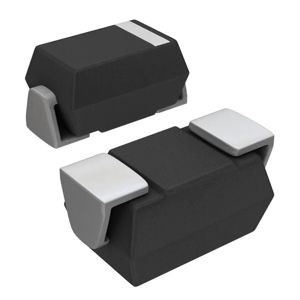

3SMAJ5954B-TP
DIODE ZENER 160V 3W DO214AC

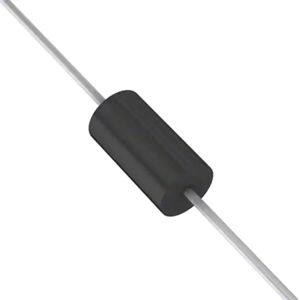

JANTXV1N3042B-1/TR
VOLTAGE REGULATOR
1PMT5942BE3/TR7
DIODE ZENER 51V 3W DO216AA
