Diodes - Zener - Single
Diodes - Zener - Single: Precision Voltage Regulation for Your Circuit Needs
Definition:
Diodes - Zener - Single are specialized semiconductor devices designed to maintain a stable reference voltage in electronic circuits. Unlike standard diodes, Zener diodes operate in the reverse breakdown region, providing precise voltage regulation and protection against voltage spikes. They are essential components in power supplies, voltage regulators, and surge protection applications.
Types of Products in This Category:
This classification includes a variety of Zener diodes tailored to different voltage and power requirements:
- Voltage Ratings: Ranging from a few volts to several hundred volts, catering to low-voltage and high-voltage applications.
- Power Dissipation: Options include low-power (e.g., 500mW) for signal circuits and high-power (e.g., 5W) for robust power management.
- Packaging: Available in multiple form factors such as DO-41, SOD-123, and SOT-23 for through-hole or surface-mount designs.
- Tolerance Levels: Precision Zeners with tight tolerances (e.g., 1%) for critical applications, and standard tolerances (e.g., 5%) for general use.
Purchasing Recommendations:
When selecting a Zener diode, consider the following to ensure optimal performance:
1. Voltage Requirement: Choose a Zener voltage (Vz) that matches your circuit s regulation needs.
2. Power Rating: Ensure the diode s power dissipation (Pz) exceeds the maximum expected load to avoid overheating.
3. Application Environment: For high-reliability scenarios (e.g., automotive or industrial), opt for diodes with robust thermal and electrical characteristics.
4. Packaging Compatibility: Select a package type that aligns with your PCB design (e.g., SMD for compact layouts).
Zener diodes are indispensable for maintaining voltage stability invest in the right specifications to enhance circuit reliability and longevity.
Filter and sort
Categories

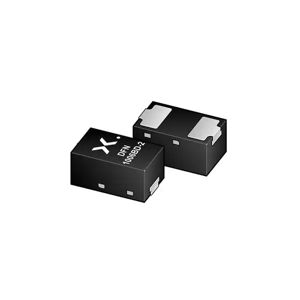

BZX884S-C3V0-QYL
SMALL SIGNAL BIPOLAR IN DFN PACK

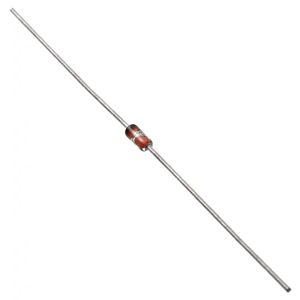

JANTX1N748A-1
DIODE ZENER 3.9V 500MW DO35

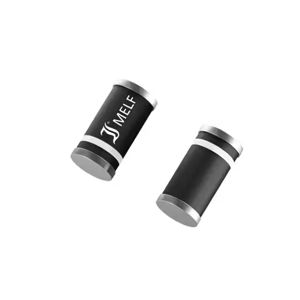

CDLL5519A/TR
VOLTAGE REGULATOR

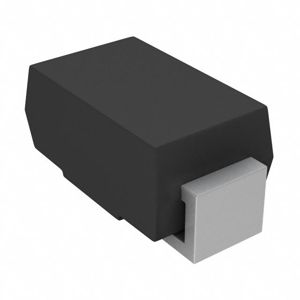

BZG03B30-HM3-08
DIODE ZENER 30V 1.25W DO214AC

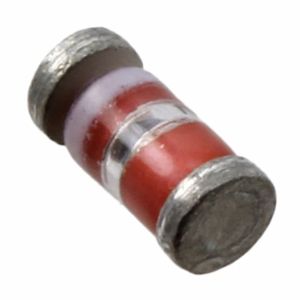

JANTX1N755CUR-1/TR
VOLTAGE REGULATOR
1N5927PE3/TR12
DIODE ZENER 12V 1.5W DO204AL

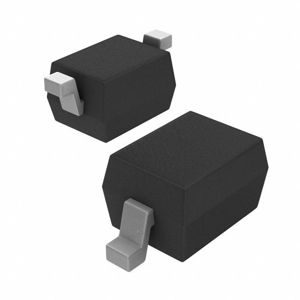

BZX384C3V0-E3-08
DIODE ZENER 3V 200MW SOD323

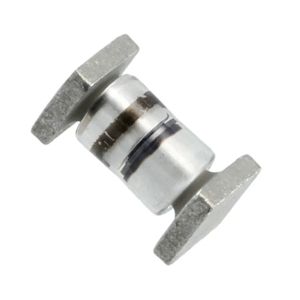

JANTX1N4482US/TR
VOLTAGE REGULATOR

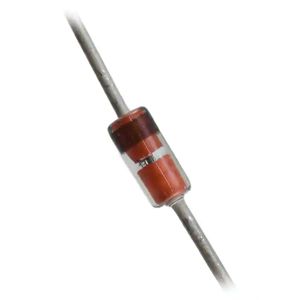

1N749A
DIODE ZENER 4.3V 500MW DO35

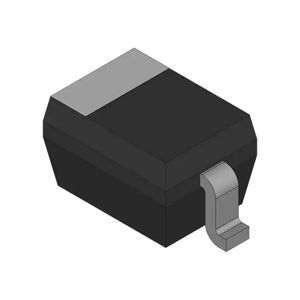

BZT52-C15S_R1_00001
SOD-323, ZENER

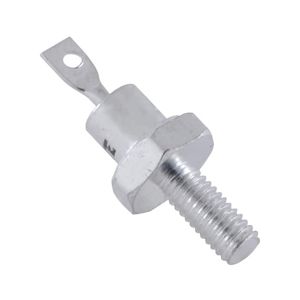

NTE5203A
DIODE ZENER 33V 10W DO4

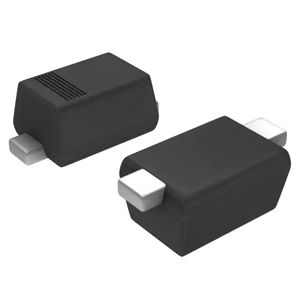

MM5Z16VT5GF
VOLTAGE REGULATOR DIODES

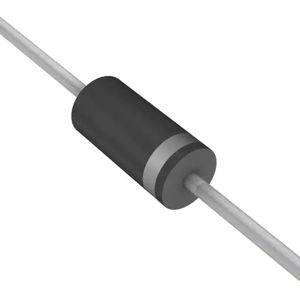

2M17ZH
DIODE ZENER 17V 2W DO204AC

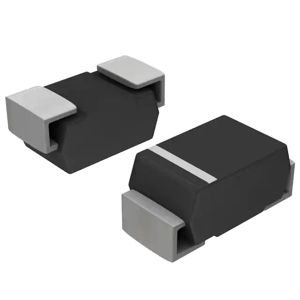

1SMA5939BT3G
DIODE ZENER 39V 1.5W SMA

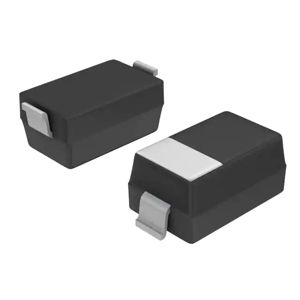

MMSZ5243B_R1_00001
SOD-123, ZENER

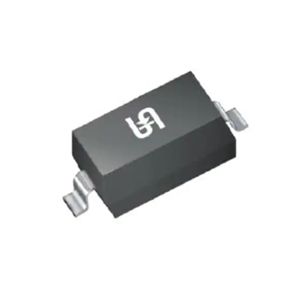

BZT52B4V7-G RHG
DIODE ZENER 4.7V 410MW SOD123
BZT52-B6V8_R1_00001
SURFACE MOUNT SILICON ZENER DIOD

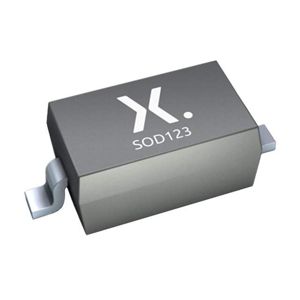

BZT52-B7V5X
DIODE ZENER 7.5V 590MW SOD123

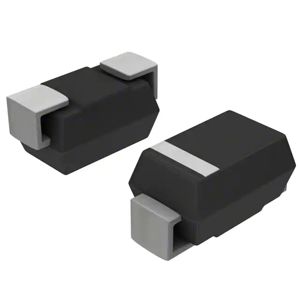

3SMBJ5922B-TP
DIODE ZENER 7.5V 3W DO214AA

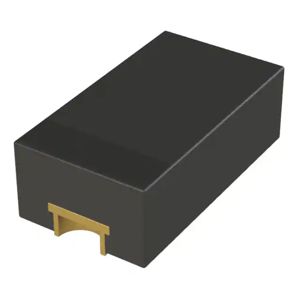

CZRU52C27
DIODE ZENER 27V 150MW 0603
