FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

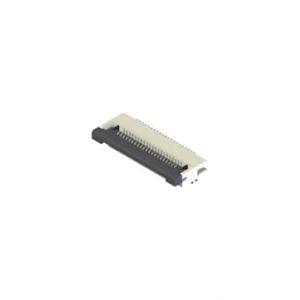

CF25161D0R0-05-NH
CF25 SERIES 0.50MM(.020") ZIF ON

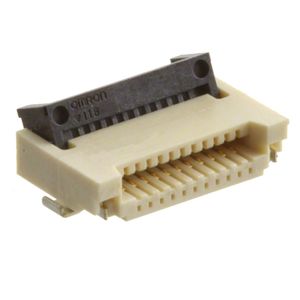

XF3M(1)-1115-1B
CONN FFC FPC 11POS 1.00MM R/A
F518-1A7A1-11005
FLEX CONNECTOR, 1.00MM PITCH, HE

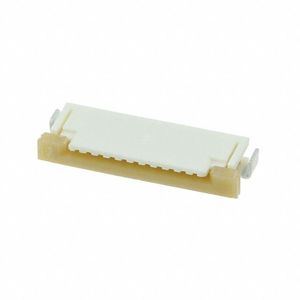

0522071133
CONN FFC FPC TOP 11POS 1MM R/A

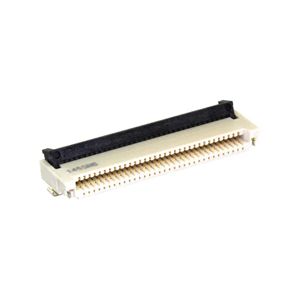

XF3M-3215-1B
CONN FFC FPC 32POS 0.50MM R/A
CF25301D0R0-05-NH
CF25 SERIES 0.50MM(.020") ZIF ON
046232112103800+
CONN FFC FPC TOP 12POS 1MM R/A

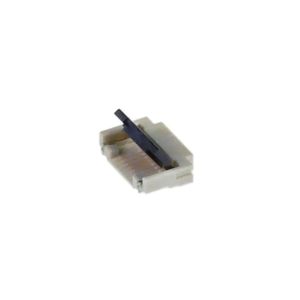

TF31-6S-0.5SH(800)
CONN FFC 6POS 0.50MM SMD

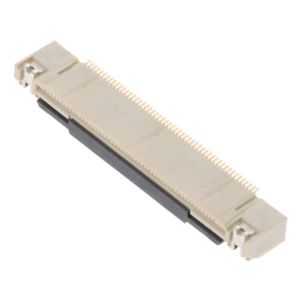

046810650001846+
0.5MM PITCH - 50 POS - RT ANGLE

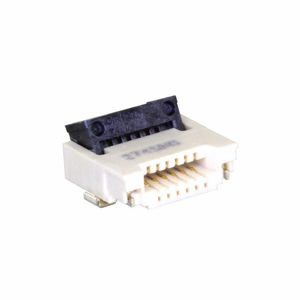

XF3M(1)-0615-1B
CONN FFC 6POS 1.00MM R/A

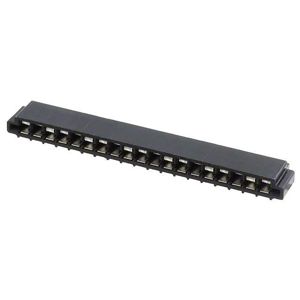

6-520314-9
CONN FFC TOP 19POS 2.54MM R/A

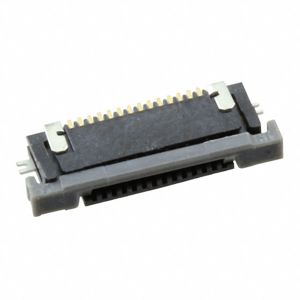

SFV14R-3STBE1HLF
CONN FPC BOTTOM 14POS 0.50MM R/A

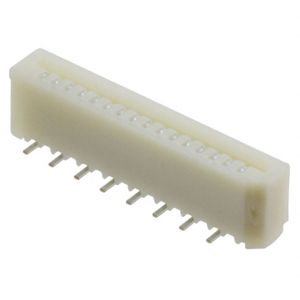

0528081670
CONN FPC VERT 16POS 1.00MM SMD

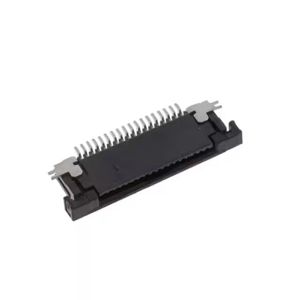

SFV18R-1STE9HLF
CONN FFC BOTTOM 18POS 0.50MM R/A

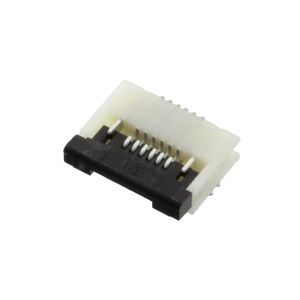

687106149022
CONN .5MM HORZ BOTTOM SMD 6POS

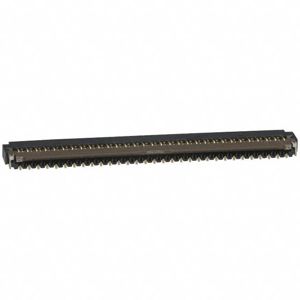

FH26W-71S-0.3SHW(60)
CONN FFC FPC 0.3MM SMD

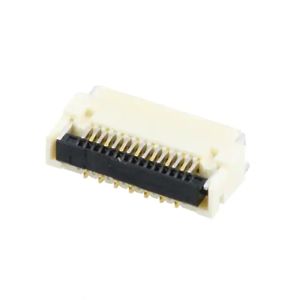

5025981593
0.3 FPC BACK FLIP HSG ASSY15CKTE

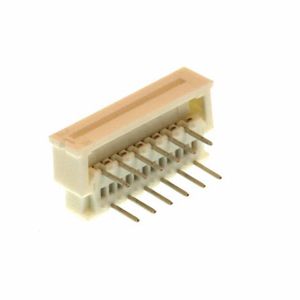

0039532124
CONN FFC TOP 12POS 1.25MM R/A

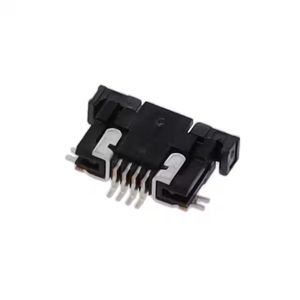

SFV4R-2STAE1HLF
CONN FFC FPC TOP 4POS 0.50MM R/A

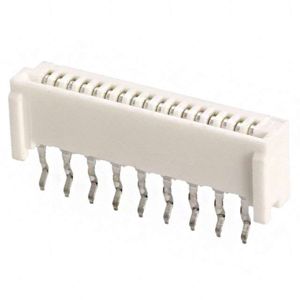

1-84534-7
CONN FFC VERT 17POS 1.25MM PCB
