FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

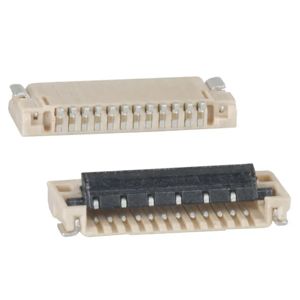

0514411293
CONN FFC BOTTOM 12POS 0.50MM R/A

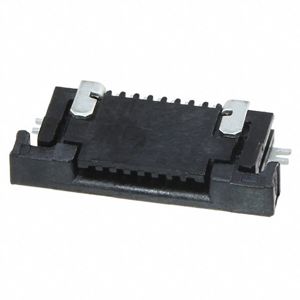

SFV8R-2STE9HLF
CONN FFC FPC TOP 8POS 0.50MM R/A
1-1734839-3
CONN FPC TOP 13POS 0.50MM R/A

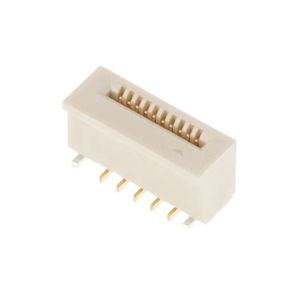

F31K-1A7H1-11010
FLEX CONNECTOR, 0.50MM PITCH, HE

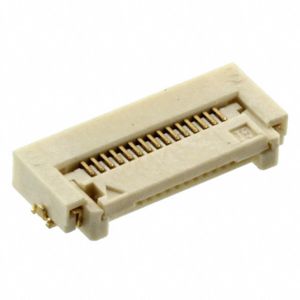

1-1775333-5
CONN FPC BOTTOM 15POS 0.50MM R/A

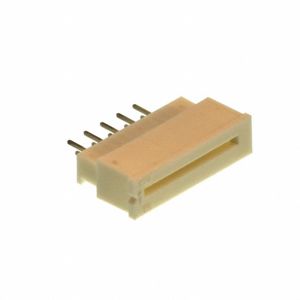

0039532105
CONN FFC VERT 10POS 1.25MM PCB

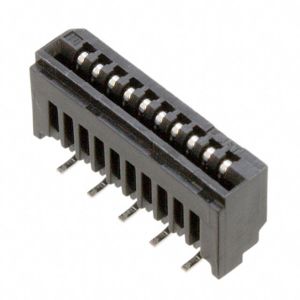

10FMN-BMTTN-A-TF(LF)(SN)
CONN FFC VERT 10POS 1.00MM SMD

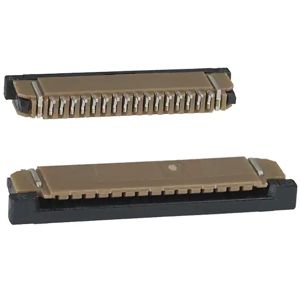

SFW16R-2STE1LF
CONN FFC FPC TOP 16POS 1MM R/A

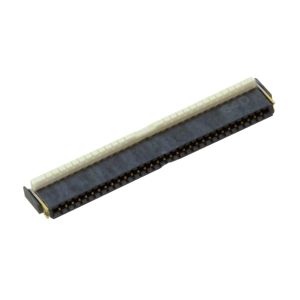

AYF533235
CONN FFC FPC 32POS 0.50MM R/A

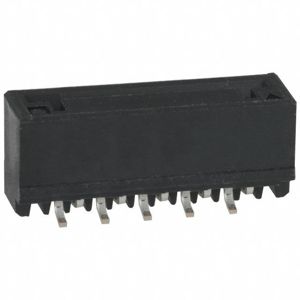

HFW10S-2STE1LF
CONN FFC FPC VERT 10POS 1MM SMD

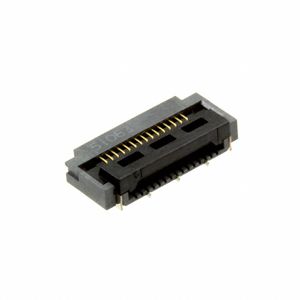

FH41-15S-0.5SH(99)
CONN FFC 15POS .5MM

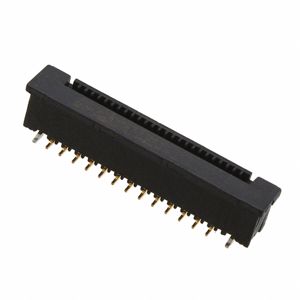

62674-261121ALF
CONN FFC VERT 26POS 0.50MM SMD

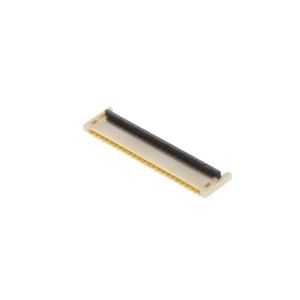

046293645005829+
0.3MM PITCH - 45 POS - RT ANGLE

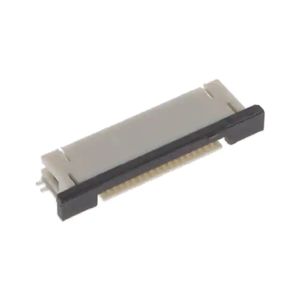

PCA-6-LA-20-HL-3
FPC/FFC CONNECTOR ZIF TYPE .5M

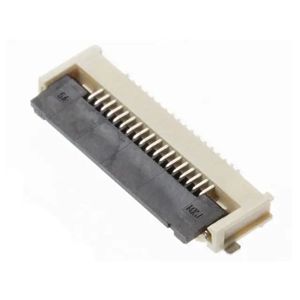

5052781533
0.5 FFC ZIF BTM CONT EMBT PKG 15
4-1734592-1
CONN FPC BOTTOM 41POS 0.50MM R/A

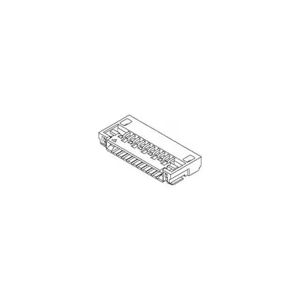

51441-2472
0.5 FPC ZIF HSG ASSY 24CKT EMBST

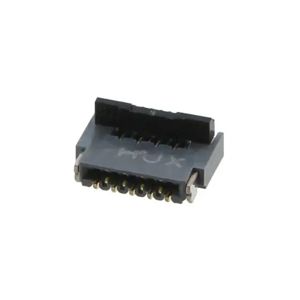

FH35C-9S-0.3SHW(99)
CONN FPC 9POS 0.30MM R/A

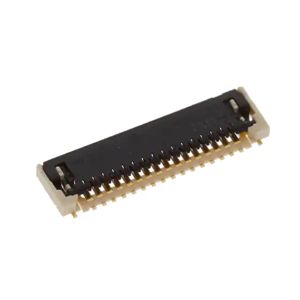

FH72-31S-0.3SHW
CONN FPC 0.3MM SMD 31POS

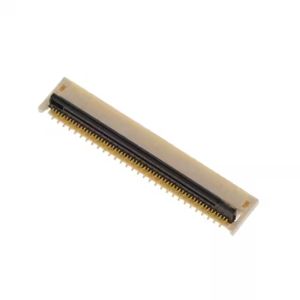

046293061004829+
0.3MM PITCH - 61 POS - RT ANGLE
